AMBER Galvanized Steel Sheet 6 Inch Fan Filter HEPA FFU 600*1200*285mm Size

AMBER Galvanized Steel Sheet 6 Inch Fan Filter HEPA FFU 600*1200*285mm Size

Place of Origin:

China

Brand Name:

Amber

Certification:

CE, ISO

Model Number:

AM-FFU023

Contact Us

Request A Quote
Product Details
Function:
Clean Room Transfer
Weight:
27-55kg
Specification:
Customized
Clean Class:
Class 100
Filter Type:
HEPA
Efficiency:
HEPA,99.99%@0.3 Um
Power:
220V/380V, 50Hz
Installation Method:
Ceiling Mounted
Material:
Stainless Steel/ Galvanized Steel/ Coated Steel
Payment & Shipping Terms
Minimum Order Quantity
1 set
Packaging Details
plywood case
Payment Terms
L/C, D/A, D/P, T/T
Supply Ability
1000 set per month
Product Description



Effective control creates stable air cleanliness levels that influence the cleanroom yields, product safety, and operational efficiency. The 6-inch Fan Filter HEPA FFU is a modular air supply unit that is comprised of a fan and a high-efficiency filter.



It is made with a high strength, galvanized steel housing that is corrosion-resistant and durable. The compact product has dimensions of 600 x 1200 x 285 mm and can be mounted to the cleanroom ceiling in a variety of ways. Its in-built HEPA filter of grade H14 removes 99.997% @0.3μm of particles, allowing steady and uniform vertical laminar air direction into the cleanroom suitable and consistent cleanliness all the time.



What type of motor does the FFU use?



By being the heart of the FFU, the fan motor has a direct influence on energy consumption, noise, the stability of wind speed of the equipment, and the maintenance costs thereof. The FFU products of AMBER achieve flexible configuration with the following two types of motor:



  • AC (alternating current) motors: These motors offer a proven structure and stable operation, making them suitable for budget-conscious projects.



  • DC (brushless direct current) motors: These motors offer higher efficiency, support intelligent speed regulation, and lower noise.



Users can flexibly select the appropriate motor configuration based on cleanroom usage frequency, energy-saving goals, and the level of intelligence required.



FFU Fan AC Motor vs DC Motor



Type DC Motor AC Motor
Energy Consumption Low power consumption High energy consumption
Advantages Energy-saving, long lifespan Affordable and easy to maintain
Noise level 55dBA±5dBA 58dBA±5dBA



Our DC motors are Japanese Nidec brand. If your budget is high, you can choose a DC FFU.



Advantages of Choosing AMBER FFUs



  • With 17 years of industry experience, we understand design, construction, and application. We support customized, customizable dimensions, motor types, and filter grades.



  • Product satisfaction rates exceed 90%.



  • We provide comprehensive cleanroom design drawings and offer on-site installation services.



  • All FFUs undergo factory-tested air volume, air velocity, static pressure, and noise levels for reliable performance.



If you need to obtain HEPA Fan Filter Unit for Sale prices, application advice, layout solutions, please feel free to contact Amber Team. We will provide you with one-on-one technical support and customized solutions.

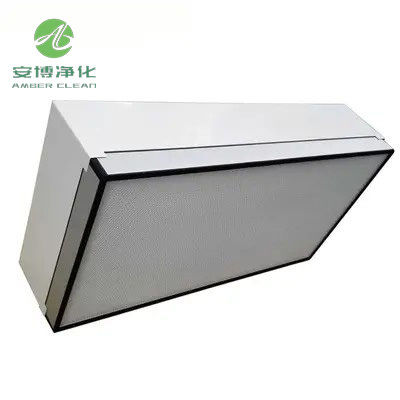

AMBER Galvanized Steel Sheet 6 Inch Fan Filter HEPA FFU 600*1200*285mm Size 0

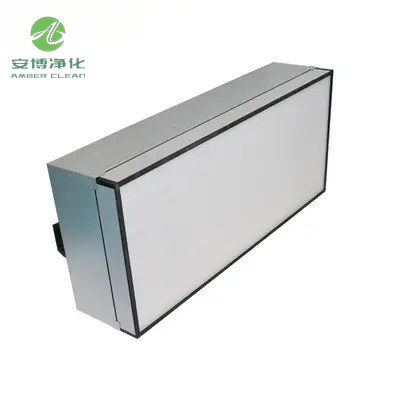

AMBER Galvanized Steel Sheet 6 Inch Fan Filter HEPA FFU 600*1200*285mm Size 1





Fan Filter Unit Specifications



Model FFU-500 FFU-1000 FFU-1500 FFU-2000

out size mm

(W*L*H)

575*575*230 575*1175*230 875*1175*230 1175*1175*230

Filter size mm

(W*L*H)

570*570*69 570*1170*69 870*1170*69 1170*1170*59
Air flow 500m³/h 1000m³/h 1500m³/h 2000m³/h
Pressure 210Pa 210Pa 220Pa 230Pa
Power 170W 170W 210W 275W
Noise 47-55dB 47-55dB 50-58dB 50-58dB
Weight 27KG 34KG 46KG 55KG
Cleanliness Class 100 (ISO 14644-1)
Material Stainless steel/ Galvanized steel/ Coated steel
Voltage AC 220V/50HZ     AC 380V/50HZ



FAQ

Q1: What cleanroom classes are suitable for FFUs?

A: AMBER FFUs, when paired with H13 or H14 HEPA filters, meet ISO Class 5 to ISO Class 8 cleanroom requirements. They are suitable for applications requiring stringent air cleanliness, such as chip manufacturing, biomedicine, food processing plants, and laboratories.



Q2: How should I choose between DC and AC motor FFUs?

A: If the project budget is limited and the cleanroom does not require frequent speed adjustments, we recommend an AC FFU.

If energy saving, noise control, and intelligent centralized management are more important, we recommend a DC FFU, which offers lower long-term energy consumption and a longer lifespan. We can also recommend the most suitable model based on your project specifications.



Q3: Does AMBER offer custom FFUs?

A: Of course. AMBER supports customization of multiple parameters, including size, housing material, motor type, and filter grade, to meet the diverse cleanroom equipment requirements of different industries and processes. Simply provide the basic ceiling opening dimensions or cleanroom class requirements, and our engineers will quickly develop a solution.

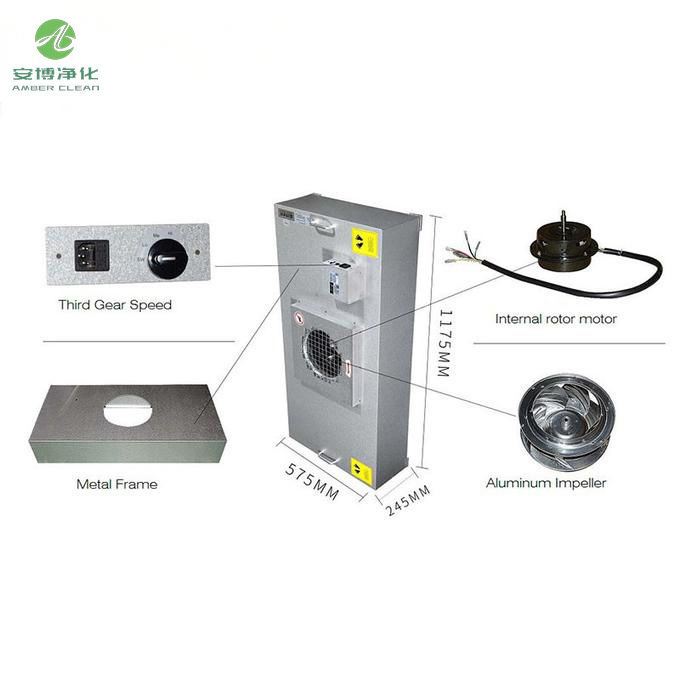

AMBER Galvanized Steel Sheet 6 Inch Fan Filter HEPA FFU 600*1200*285mm Size 2AMBER Galvanized Steel Sheet 6 Inch Fan Filter HEPA FFU 600*1200*285mm Size 3

AMBER Galvanized Steel Sheet 6 Inch Fan Filter HEPA FFU 600*1200*285mm Size 4

AMBER Galvanized Steel Sheet 6 Inch Fan Filter HEPA FFU 600*1200*285mm Size 5

AMBER Galvanized Steel Sheet 6 Inch Fan Filter HEPA FFU 600*1200*285mm Size 6

AMBER Galvanized Steel Sheet 6 Inch Fan Filter HEPA FFU 600*1200*285mm Size 7

AMBER Galvanized Steel Sheet 6 Inch Fan Filter HEPA FFU 600*1200*285mm Size 8
