Fan filter Units are end purification equipment that combines fans and high-efficiency fiters (HEPA) toprovide power, used in laminar flow clean rooms to meet the cleanliness level requirements of 100-100000.

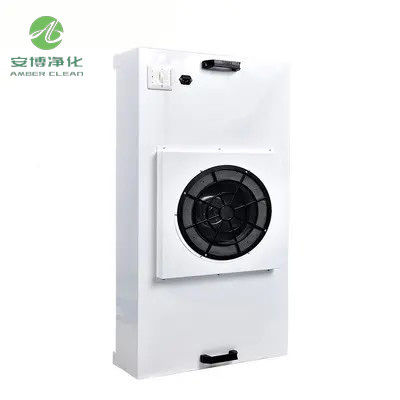

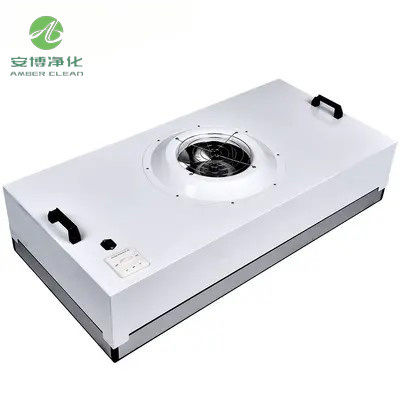

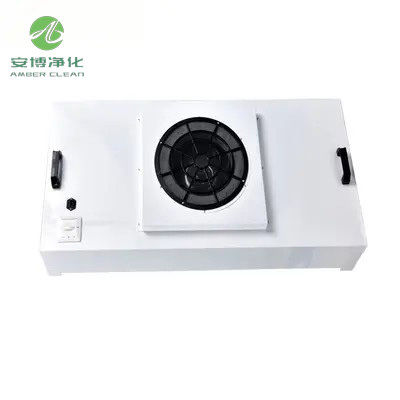

The Fan Filter Unit FFU from Amber uses high-quality galvanized steel as the shell, with a sturdy and durable structure and excellent corrosion resistance, suitable for long-term high-load clean environments. Built-in high-efficiency HEPA filter or ULPA filter can effectively remove particles ≥ 0.3 μm, and the wind speed on the air outlet is uniform, ensuring stable cleanliness in the air supply area.
Product Advantages
1. High-efficiency filtration performance
Built-in HEPA/ULPA high-efficiency filter, ≥99.99% particle removal rate, ensuring Class 100 cleanliness level.
2. Galvanized steel plate shell
Sturdy and corrosion-resistant, suitable for long-term use in high-cleanliness environment, simple maintenance.
3. Uniform wind speed, adjustable air volume
Evenly distributed wind speed, avoiding dead corners of air flow, supporting stepless speed regulation, adapting to different cleanliness requirements.
4. Energy-saving silent fan
47-58dB, long-term stable operation, energy saving and environmental protection.
5. Flexible installation and convenient maintenance
Adapt to modular ceiling, clean shed, air shower room, etc., and the filter can be replaced quickly.
6. Multiple specifications are available, support customization
Provide a variety of sizes and air volume specifications to meet the needs of different clean room engineering projects.
Wide application scenarios
Applicable to operating rooms, biopharmaceutical workshops, electronic dust-free workshops, food purification workshops, etc.
Fan Filter Unit Specifications
| Model |
FFU-500 |
FFU-1000 |
FFU-1500 |
FFU-2000 |
|
out size mm
(W*L*H)
|
575*575*230 |
575*1175*230 |
875*1175*230 |
1175*1175*230 |
|
Filter size mm
(W*L*H)
|
570*570*69 |
570*1170*69 |
870*1170*69 |
1170*1170*59 |
| Air flow |
500m³/h |
1000m³/h |
1500m³/h |
2000m³/h |
| Pressure |
210Pa |
210Pa |
220Pa |
230Pa |
| Power |
170W |
170W |
210W |
275W |
| Noise |
47-55dB |
47-55dB |
50-58dB |
50-58dB |
| Weight |
27KG |
34KG |
46KG |
55KG |
| Cleanliness |
Class 100 (ISO 14644-1) |
| Material |
Stainless steel/ Galvanized steel/ Coated steel |
| Voltage |
AC 220V/50HZ AC 380V/50HZ |
FAQ
Q1: Which cleanroom levels are suitable for this FFU Fan Filter Unit?
A: This product is suitable for cleanrooms of Class 100 (ISO 5) and below, such as operating rooms, biopharmaceutical GMP workshops, electronic dust-free workshops, etc. Equipped with high-efficiency HEPA or ULPA filters, it can effectively filter particles ≥0.3μm to ensure the air quality of the clean area.
Q2: What are the installation methods of FFU?
A: Fan Filter Unit FFU can be installed in the modular ceiling system of the clean room, or it can be used alone with a clean shed, air shower room or transfer window. It supports embedded ceiling installation and simple hanging installation, with a flexible structure, which is convenient for later maintenance and expansion of the clean room.
Q3: Does it support customization of different specifications and wind speeds?
A: Yes, we support customization of different specifications and wind speed parameters according to the customer's clean room area, ceiling opening size, cleanliness level, and air volume requirements to meet the needs of diverse clean room projects.
