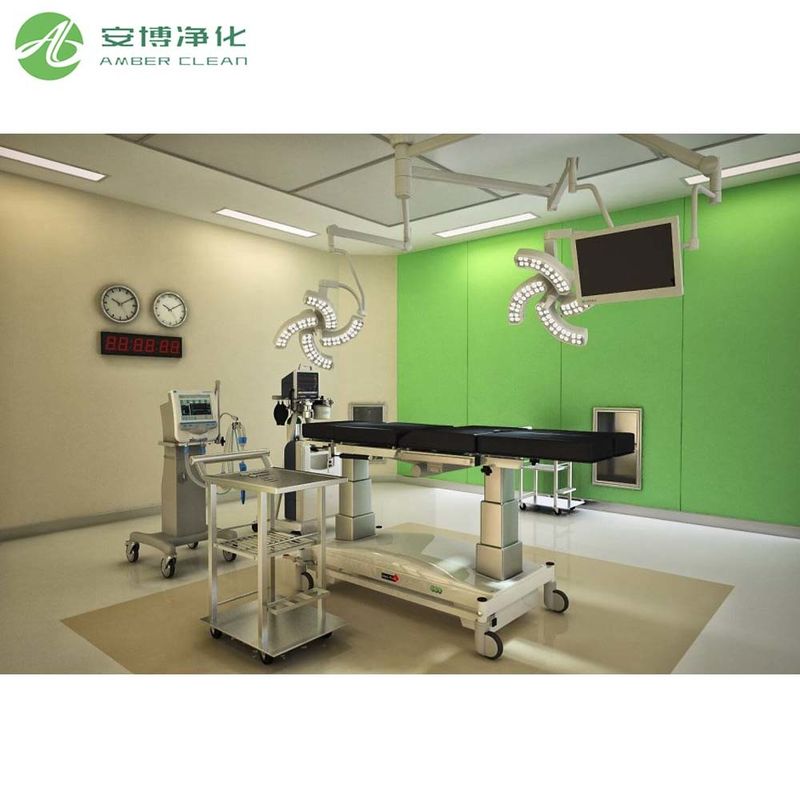

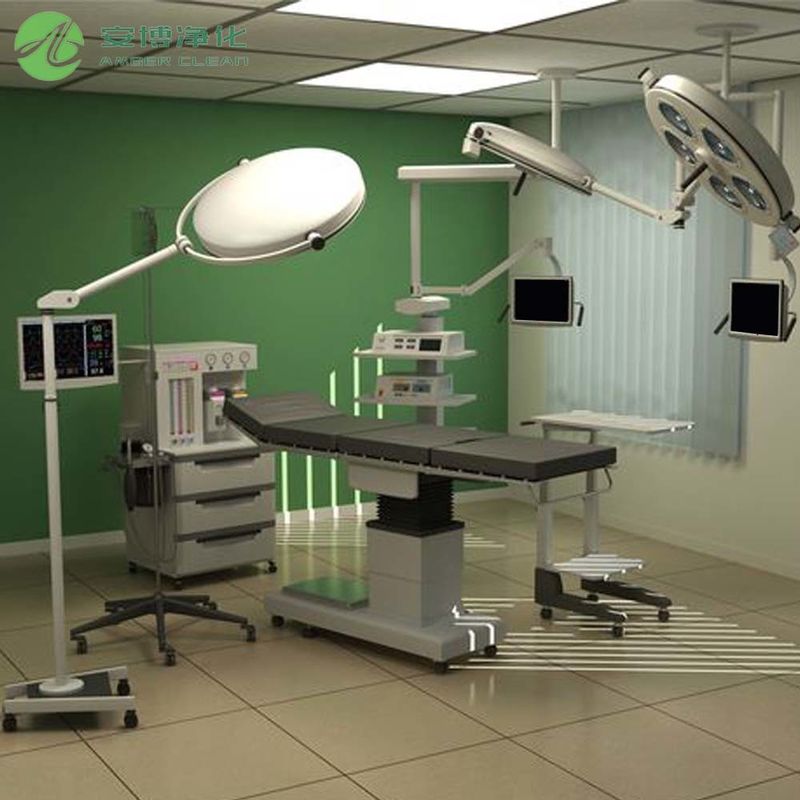

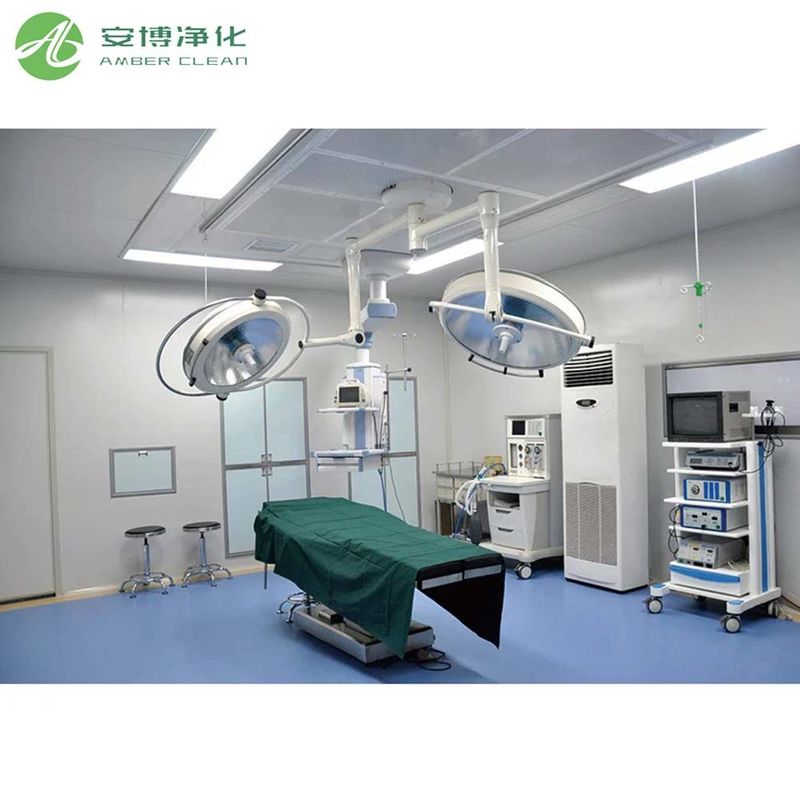

AMBER Quick Installation Structure Laminar Flow Modular Operating Theatre

About Amber

Amber is specializing in Modular Operation Theatre design and construction, providing one-stop services. It has more than 17 years of rich service experience in the dust-free purification sector and has served more than 120 countries. Amber laminar flow Modular Operating Theatre adopts modular structure design to ensure short construction period, high cleanliness level and strong flexibility to meet different surgical needs. It is a clean operating room solution tailored for medical institutions.

Modular Operating Theatre System is an efficient surgical environment assembled on site through standardized modular panels, clean equipment and supporting systems. It has the advantages of fast construction speed, convenient post-maintenance and flexible space layout.

The composition of modular operating room

1. Laminar Air Supply Ceiling

Laminar Air Flow ceiling system ensures correct pressure and air changes are maintained inside Operation Room and aims to reduce the number of infective organisms in the theatre air and reduces the risk of operative and post-operative infection while providing optimum comfort.

Standard size

• 2600*2400*500mm class100

• 2600*1800*500mm class1000

• 2600*1400*500mm class10000

2. Medical Cabinets

Medical cabinets include medicine cabinet, instrument cabinet, anesthetist cabinet.

• Material: SS304 Stainless Steel sheet of minimum 1.0 mm thickness.

• Size: standard size as 900 mm x 350 mm x 1700 mm, also can make custom size.

3. X-Ray Viewer

Specifications

• Number of films: 2

• Flickering free LED light

• Effective life of LED light: Minimum 50,000 hrs

• Lighting of LED: Adjustable

• Frame: SUS304 stainless steel

4. OT control system

Surgeon Control Panel with minimum 27-32” multifunction control LCD touch screen, designed to ensure efficient work of medical personnel with comfort shall be recessed in the wall panel with ability to display / control following parameters:

• Digital Real Time & Date Display

• Elapsed Timer Display

• Room Peripheral Light Control (On, off, etc.)

• Temperature and Humidity control of HVAC system

• Temperature and humidity Run time display

• HVAC filter and HEPA Filter status display

• Shadowless lamp control ( On, off)

• IT power monitoring, medical gas alarm, telephone, group call, special call

• Alarms indicators (Laminar Air Flow, Temperature, Humidity & medical gases)

5. Gas terminal box

It is made of SUS304 stainless steel material, installed with 3-5pcs gas terminal with different standard available, include Europe standard, American standard, England standard, JIS standard, etc. Back connection to medical gas pipeline, when the gas terminals on the surgical pendant are insufficient, they will be used generally.

6. Stainless steel writing table

It is made of 1.0mm SUS304 stainless steel, used when nurses or doctors need to record content during surgery. When the door is opened, the LED lights inside will automatically turn on, and when the door is closed, the lights will automatically turn off. Embedded installation on wall panels.

7.OT equipment

Three types of OT equipment shall be installed Operation Theatre Complex, including:

• LED shadowless lamp

• Surgical pendent

• OT table

8. Flooring

• Material: 2.0 or 2.2mm thickness PVC material floor, made by South Korea LG brand

• Floor Skirting: shall be covered and made from PVC floor with base height about 150mm

• Installation: The floor is installed giving hygienic finishes suitable for operating rooms with covered edges at the wall connection and factory molded corners. All joints are heat welded using welding rods of matching color.

9. Wall Panels

Powered Coated Electrolytic Steel Wall Panel ( On four walls of Operating Rooms)

• Material: Electrolytic sheet of minimum 1.2 mm thickness,filled by fireproof aluminum honeycomb, back side of minimum 0.5mm thickness galvanized steel.

• Finish: Electrolytic steel is coated with anti-bacteria powder, back side galvanized steel is coated with anti-bacteria powder.

• Panels Size: Total panel thickness will be minimum 50 mm. The height and width of each panel will be customized according to client's requirement.

FAQ

Q1: Can the cleanliness level of the operating room be customized?

A: Yes. AMBER as one of the professional Modular Operation Theatre Manufacturers, which provides Class 100, Class 1000 and Class 10000 cleanliness level operating rooms according to different types of surgeries, which are suitable for various surgical environment requirements such as cardiac surgery, neurosurgery, ophthalmology, orthopedics, etc.

Q2: How long does the installation cycle take?

A: The on-site installation cycle of the standard Modular Operation Theatre System is usually completed within 15-25 days, depending on the area of ​​the operating room, the complexity of the configuration and the cleanliness level requirements, which is much faster than the traditional civil engineering method.
