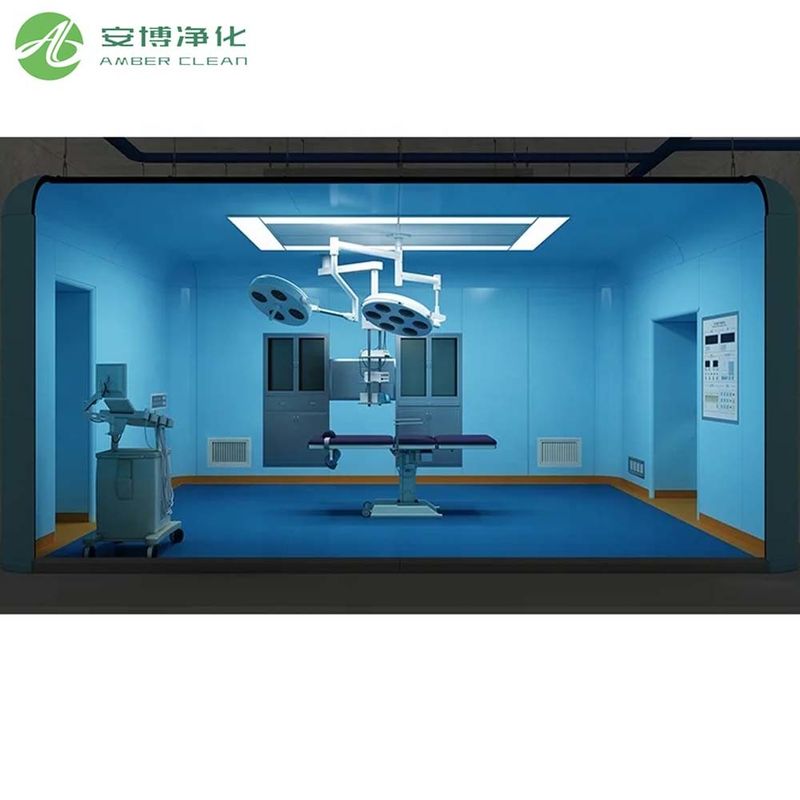

A Modular Operating Theatre is a surgical space designed and constructed using prefabricated modular structures, meeting the high cleanliness, high standards, and scalability requirements of hospital architecture. During the design phase, the modular operating room system fully integrates multiple dimensions, including medical processes, ergonomics, cleanliness standards, electrical controls, airflow management, lighting, and information systems. The result is a highly integrated, safe, and efficient surgical environment that complies with GMP and international cleanliness standards.
AMBER has been providing comprehensive MOT solutions for over 17 years, helping hospitals and medical project clients efficiently build customized surgical spaces in over 120 countries. From design drawings to on-site construction, our experienced professional team provides comprehensive support.
Composition structure of Modular Operating Rooms
A complete modular operating room kit consists of the following core components:

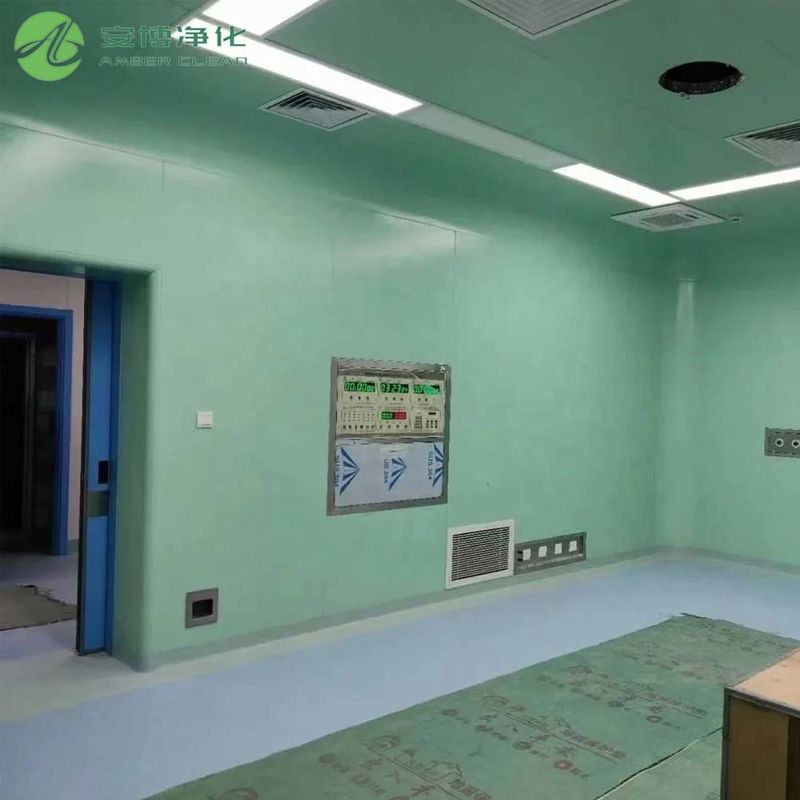

Modular operating room wall system (Operating Room Modular Walls)
- Use color steel or stainless steel honeycomb sandwich panels, combined with seamless assembly technology
- Achieve good clean closure, stable purification level, and safe structure
- Equipped with customized accessories such as doors and windows, pass box interfaces, and inspection ports to meet usage requirements
Modular Operating Room Ceilings System
- Install high-efficiency filter units (FFU) and clean modules to form laminar or mixed airflow
- Support the installation of equipment such as surgical lights, medical tracks, and pendants
Air purification system
- Includes FFU, AHU and air shower room - provides HEPA/ULPA grade clean air through multi-stage filtration (primary, medium and high efficiency)
- Maintain positive pressure environment and control air replacement times to ensure particle control and biosafety

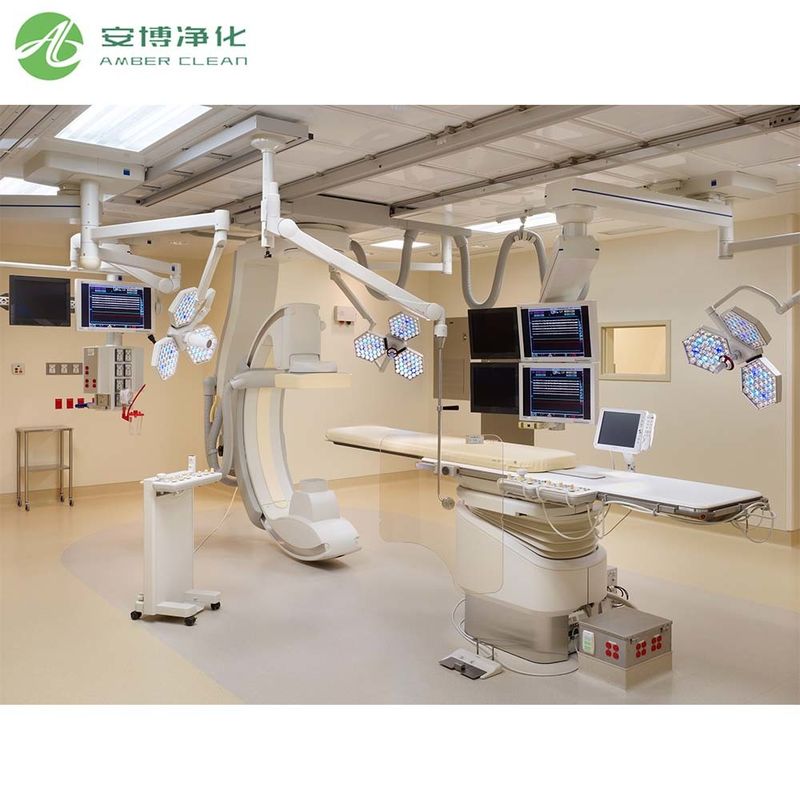

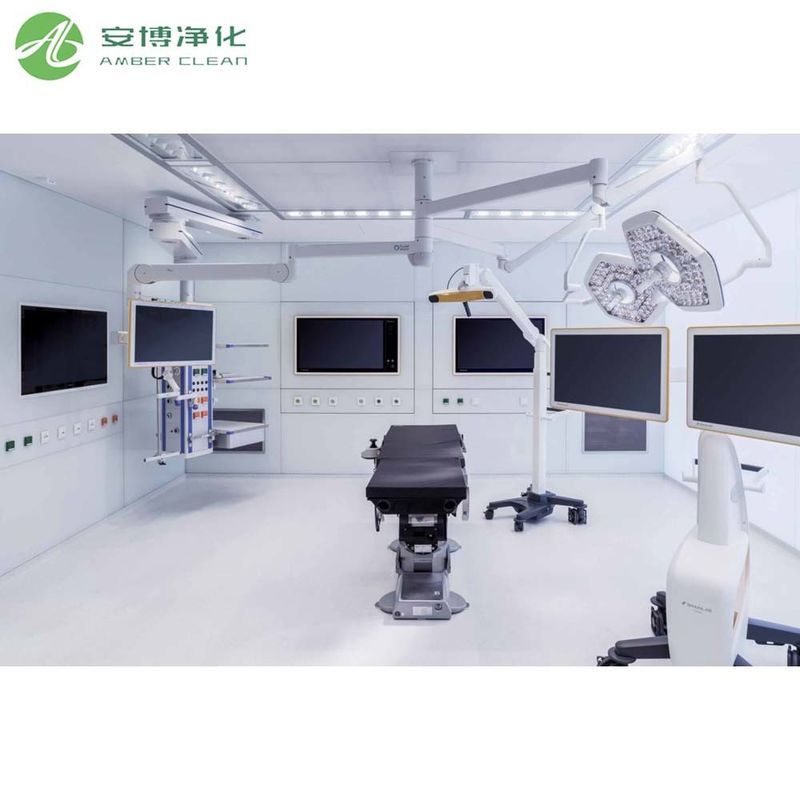

Assistive medical equipment
- Install medical operating tables, operating lights, wash basins, writing tables, medical gas interfaces, monitoring and communication channels
Control and monitoring system
- Real-time monitoring of cleanliness (temperature, humidity, particle count, pressure difference)
- Integrate building control system (BMS) or customized cloud platform to provide remote monitoring, alarm and data recording functions
Installation and engineering services
- Provide one-stop delivery from design drawing output, factory prefabrication, on-site assembly and construction, equipment commissioning, clean verification to acceptance
- Support site assessment, special construction plan, compliance assessment and post-maintenance guarantee
Modular Operating Rooms Rating and Key Indicators
To ensure that operating rooms meet the standards of different industries and surgical complexity, they can be divided into the following categories according to cleanliness levels:
| Grade |
Standard working conditions |
Air cleanliness |
Filtration requirements |
Applicable scenarios |
| ISO 5 / Class 100 |
Cleanest, laminar airflow array |
≤100 particles (0.5µm/m³) |
HEPA / ULPA |
High-end chip packaging, organ transplant surgery |
| ISO 6 / Class 1000 |
High cleanliness |
≤1000 particles |
HEPA |
Routine and complex surgery, pharmaceutical-grade clean environment |
| ISO 7 / Class 10000 |
Medium cleanliness |
≤10000 particles |
Medium efficiency + HEPA |
Small operating room, sterile packaging of cosmetics |
| ISO 8 / Class 100000 |
Basic cleanliness |
≤100000 particles |
Medium efficiency filtration |
General examination room, simple operation area |
Key indicators
- Particle count and grade distinction: cleanliness is determined by ISO 14644‑1 standard
- Pressure difference control: The operating room should maintain positive pressure, and the door control system design ensures that there is no cross infection in the inspection process
- Airflow organization method: laminar flow design is suitable for high cleanliness level, and mixed or turbulent flow method is suitable for ISO 7-8 area
Advantages of choosing us
- Rich experience: 17 years of technical accumulation and project management capabilities
- Full process guarantee: design-manufacturing-construction-delivery-maintenance, reducing multi-party coordination costs
- High standard delivery: in line with ISO, GMP, FDA and other specifications, which can cope with high-demand industries such as medical/semiconductor/pharmaceuticals
- Tailor-made: Whether it is indoor layout, airflow pattern, or beautiful materials, we can deeply plan and upgrade according to customer needs.
Contact the professional Amber Team to get your exclusive Modular Operating Room solution, so that your project can achieve a leap forward in cleanliness, safety and efficiency!
FAQ
Q1: Are you a manufacturer of modular operating theater equipment?
A: Yes, AMBER is not only a construction service provider for modular operating room systems, but also a manufacturer of modular operating theater equipment. We develop and produce all our own equipment, including air showers, FFUs, medical lighting, pendant systems, cleanroom doors, and transfer cases, ensuring timely delivery, quality, and integrated technical support.
Q2: Can you customize your operating room to meet your hospital's space and functional requirements?
A: Absolutely. We offer personalized customization services, from initial design drawings and functional zoning planning to equipment selection and cleanroom level setting, tailored to your specific needs.
