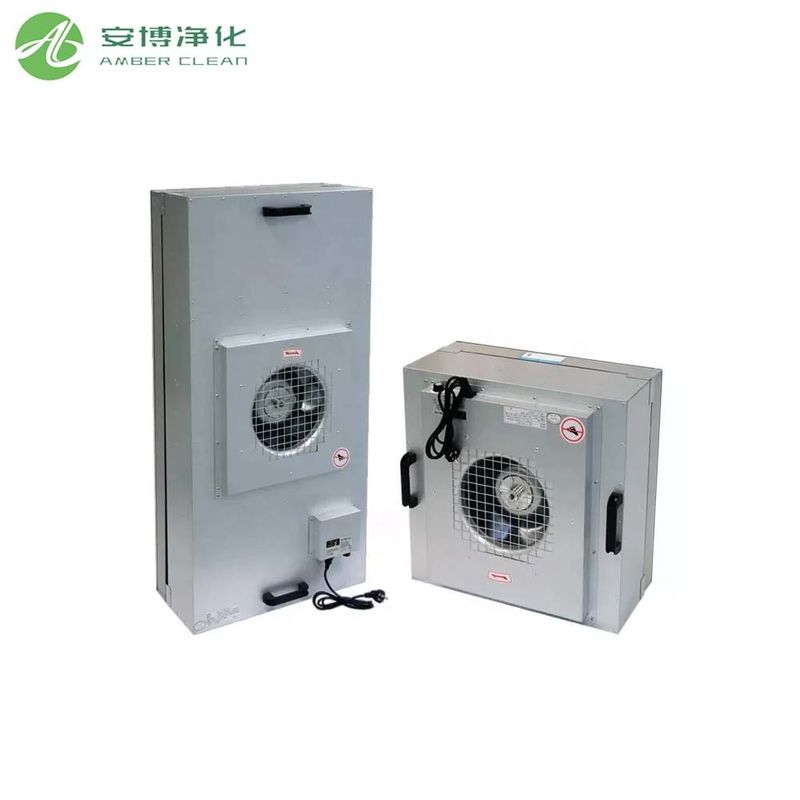

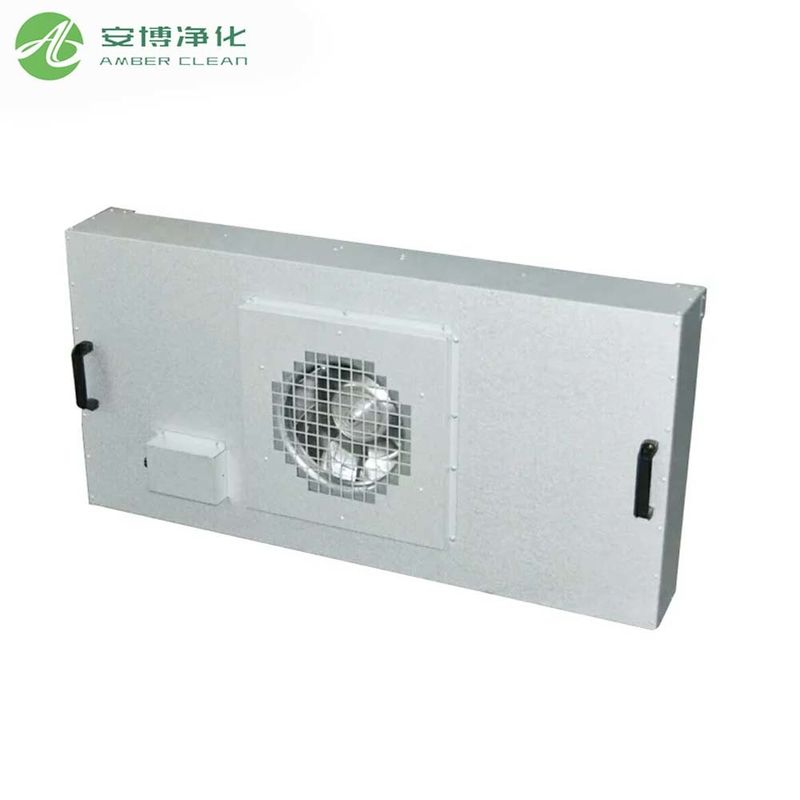

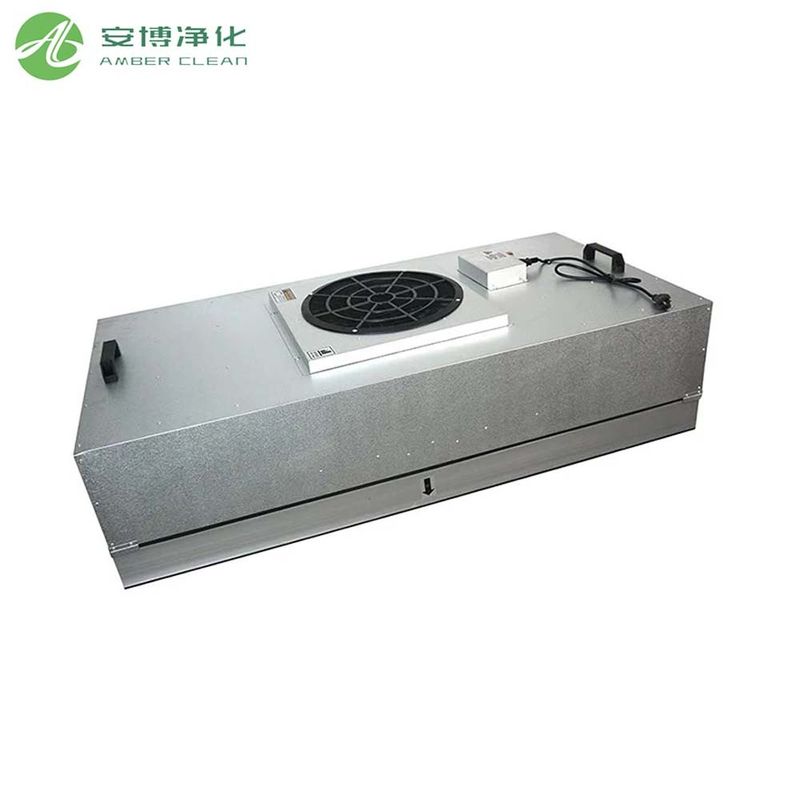

Fan Filter Unit is a kind of air purification equipment for clean room or localized clean environment, which mainly consists of fan and HEPA/ULPA. Its core function is to effectively remove particles, microorganisms and other pollutants by continuously inhaling air and sending it out in a laminar flow after high-efficiency filtration to form a one-way airflow with high local cleanliness.
How does FFU work?
There are 4 steps of the FFU Fan Filter Unit working:
1.Air intake: The built-in fan draws in air from the outside.
2.Filtration and purification: The inhaled air passes through (HEPA/ULPA) to remove particles, microorganisms and other pollutants.
3.Laminar Flow: The filtered clean air is sent out in a uniform, unidirectional laminar flow to form a stable clean environment.
4.Circulation Maintenance: Clean air is circulated in the space to continuously maintain high cleanliness.
Hepa Fan Filter Unit can be installed flexibly through modularized design, suitable for clean room or local clean area, widely used in semiconductor, pharmaceutical, laboratory and other industries.
What are the features of our FFU-1500 with 45KG products?
1.The fan adopts high-grade direct drive centrifugal fan, which has the characteristics of long life, low noise,small vibration, stepless speed regulation, etc. For example, the outer size is 875*1175*230mm, the air flow could be 1500m³/h, the pressure is 220Pa, and the noise is 50-58dB.
2.The box structure adopts aluminum zinc plate or stainless steel, which is beautiful and durable
3.The materials are made of stainless steel/ galvanized steel/ coated steel.
Our strengths
1. Support product customization.
2. Small quantity purchase.
3. fast production efficiency and delivery efficiency.
4. providing after-sales service.
5. Quality is guaranteed, products are CE/ISO/GMP certified.
