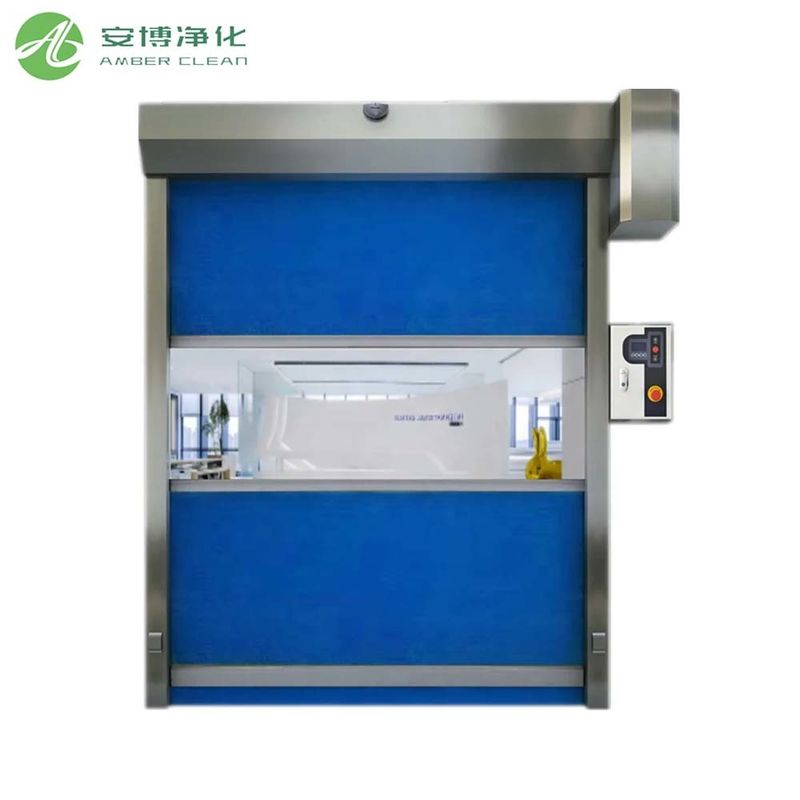

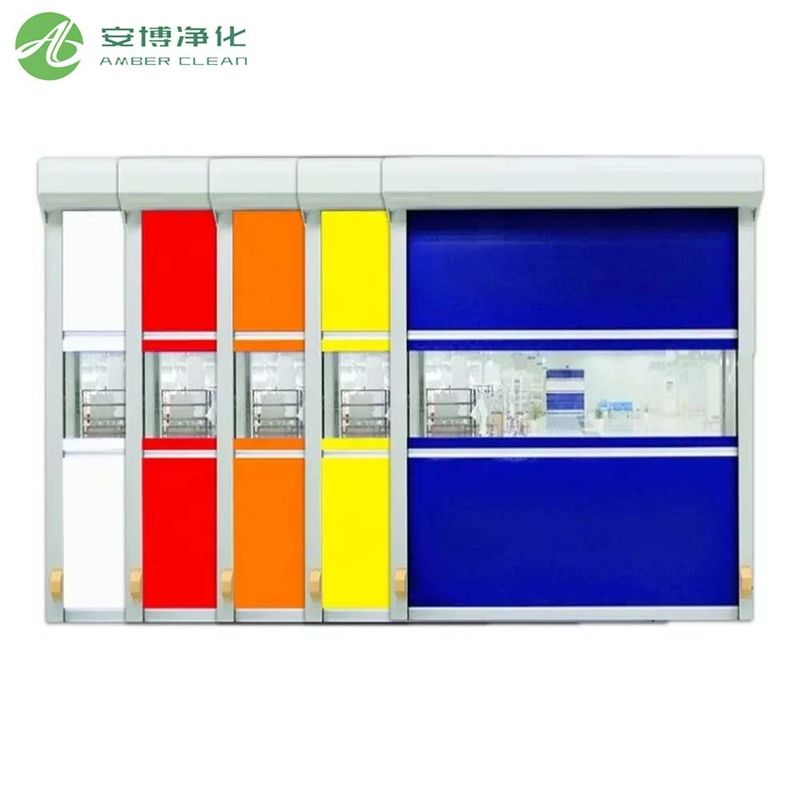

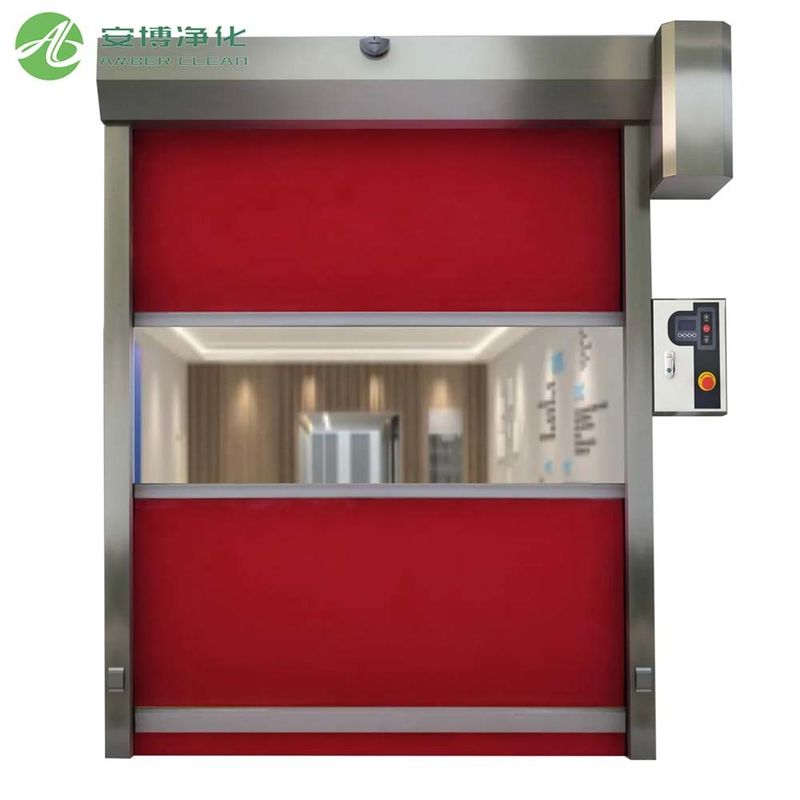

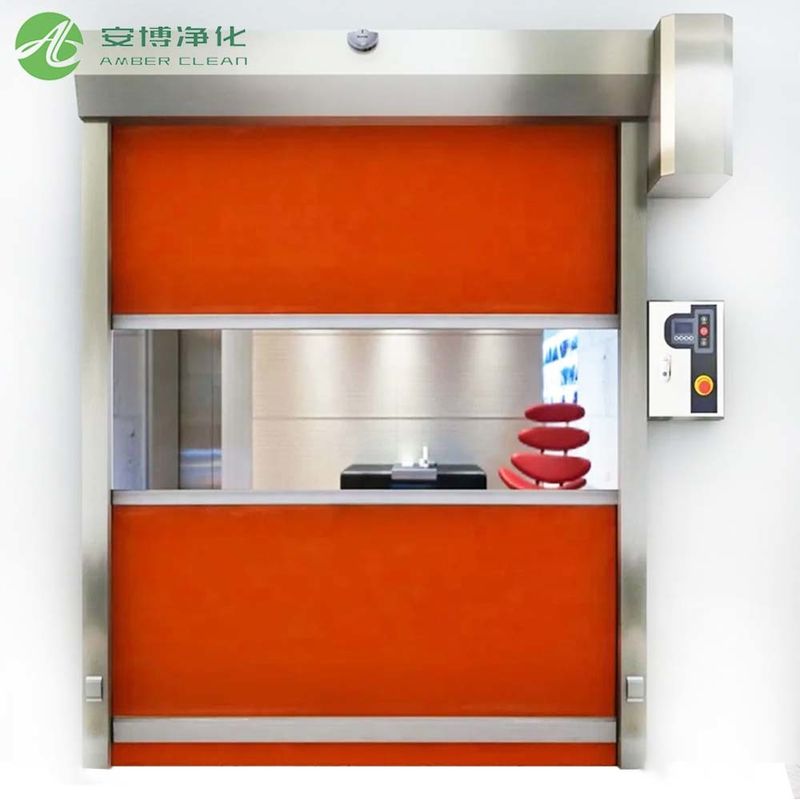

This is one of Amber's Rolling Up Doors. Designed for modern industrial and commercial environments, this PVC rolling door perfectly combines efficient operation, safety, and durable design. The door curtain is constructed of 1.0mm high-strength polyvinyl chloride (PVC), and the transparent viewing window area is constructed of 1.5mm PVC, ensuring excellent wear resistance and clear visibility, making operation safer and more convenient. The sturdy door frame is made of 1.5mm SS304 stainless steel or cold-coated plate, and the door head is made of 1.0mm material, providing a stable overall structure and excellent impact resistance.
This rolling shutter door features an aluminum alloy wind-resistant rod that can withstand winds up to force 7 and is suitable for doors up to 6 meters wide. Its opening and closing speed is adjustable from 0.5 to 2.8 m/s, with a standard operating speed of 1.5 m/s, significantly improving work efficiency in warehouses, workshops, and commercial spaces. The motor utilizes a high-performance servo motor, rated at 0.75 kW for areas under 15 square meters and 1.5 kW for areas over 15 square meters, ensuring smooth and stable opening and closing.
The door control system supports multiple operation methods, including induction, remote control, push buttons, and geomagnetic control (only for vehicles, not for people). It comes with a control box with English and Chinese language switches for easy operation. Safety features are also excellent: the anti-pinch design automatically rebounds when encountering an obstacle. In the event of a power outage, the door can be opened manually or automatically with a backup power supply, ensuring the safety of personnel and equipment.
These commercial roller doors are made of B1-grade flame-retardant PVC material with flame retardants added to further enhance fire resistance, providing reliable protection for factories, warehouses, logistics centers, and commercial workshops. Whether used for fast logistics channels, industrial production lines, or vehicle access control, these high-speed rolling doors balance efficiency, safety, and durability, providing a comprehensive solution for modern commercial operations.
Specifications
| Door panel material |
galvanized steel plate / stainless steel plate / color steel plate |
| Fire proofing |
B1, fire resistance ≥ 120 minutes |
| Door panel thickness |
0.8mm / 1.0mm / 1.2mm |
| Filling material |
fire-retardant high-density rock wool / polyurethane foam |
| Opening and closing method |
electric / manual / automatic induction |
FAQ
Q1: How strong winds can the door withstand?
A: The door is equipped with an aluminum alloy wind bar and is suitable for winds up to force 7, but the specific wind resistance will vary depending on the door size.
Q2: What happens in the event of a power outage?
A: The door can be opened manually or by cranking using the servo motor's brake system. A backup power supply can also be installed for automatic opening during a power outage.
Q3: What are the flame retardant properties?
A: The door curtain is made of B1-grade flame-retardant PVC, which contains flame retardants to enhance fire safety. It is suitable for industrial and commercial use.
Q4: What are the applicable scenarios?
A: It is suitable for industrial plants, warehouse logistics corridors, commercial workshops, and vehicle import and export management, especially in environments requiring fast passage and safety protection.
