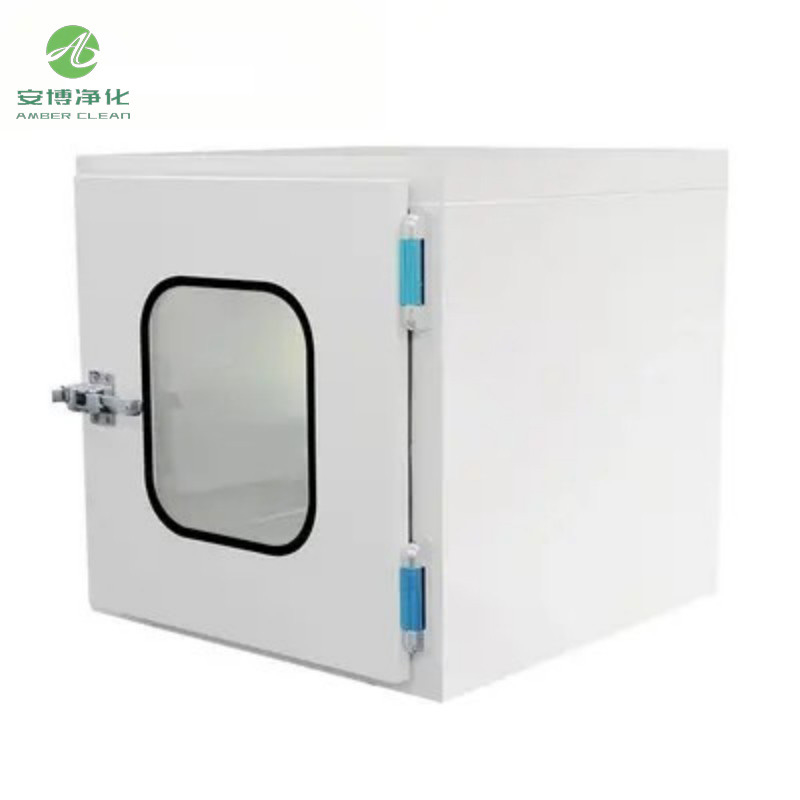

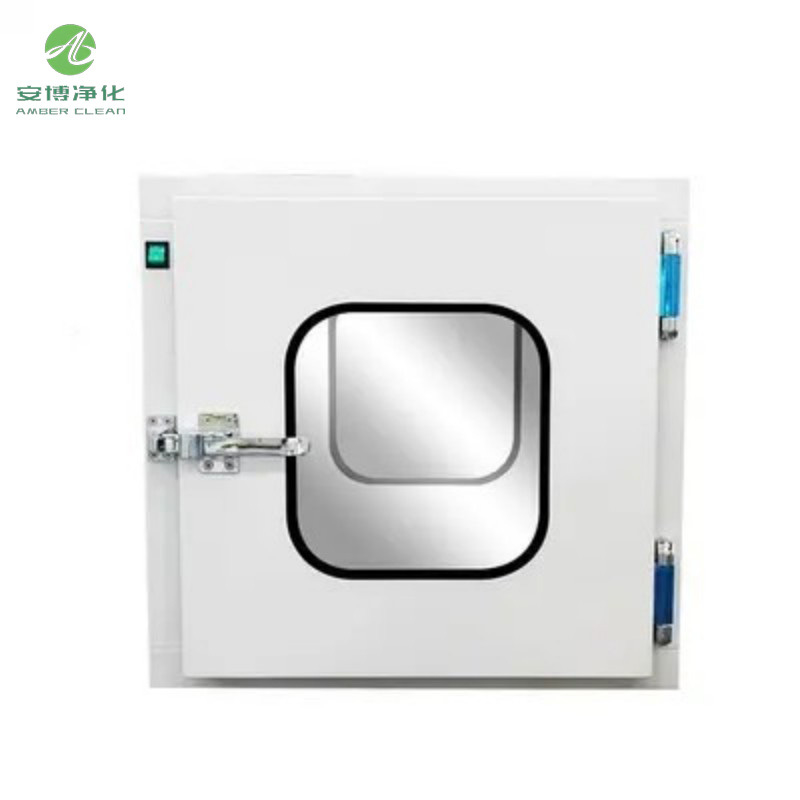

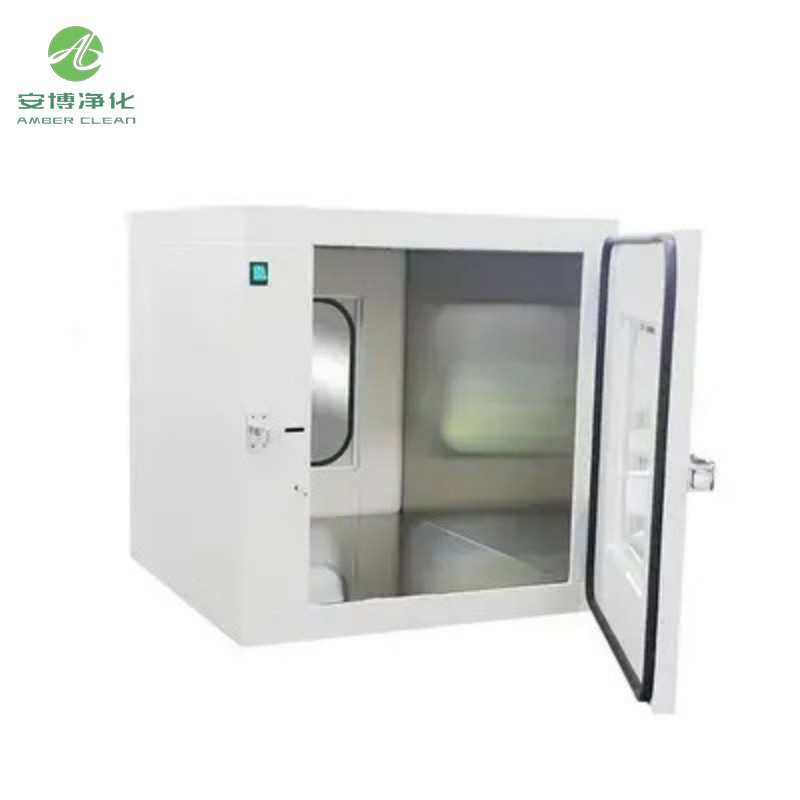

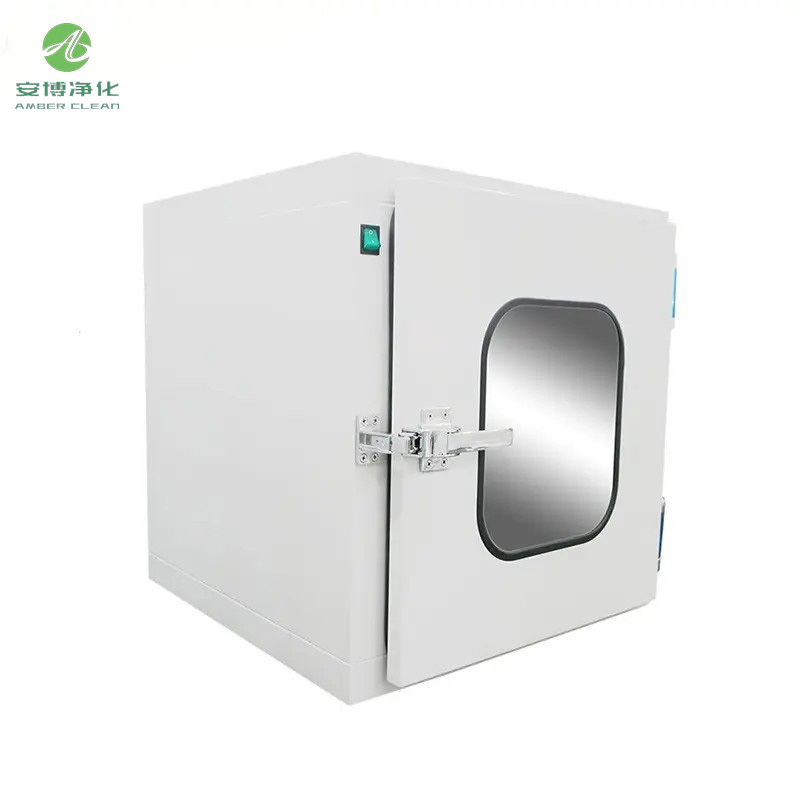

AMBER SUS 304 / 201 Mechanical Interlock Dynamic Pass Box in Pharma

AMBER SUS 304 / 201 Mechanical Interlock Dynamic Pass Box in Pharma

Place of Origin:

China

Brand Name:

AMBER

Certification:

CE, ISO

Model Number:

AM-PB018

Contact Us

Request A Quote
Product Details
Material:
Stainless Steel
Application:
Pharmacutical, Clean Room, Operation Theatre Etc
Power:
AC 220V/50Hz
Function:
Purification Filter, Clean Transfer Window
Type:
Hepa Filter, Static Dynamic Pass Box
Interlock:
Electronical, Self-Contained Door
Payment & Shipping Terms
Minimum Order Quantity
1 Set
Price
USD280 per set
Packaging Details
plywood case
Delivery Time
5-8 days
Payment Terms
T/T, L/C, D/A, D/P
Supply Ability
1000 set per month
Product Description



Pass Box, also called Transfer Window, is an auxiliary device installed in a clean room or between areas of different cleanliness levels, and is specifically used for the transfer of items between different clean areas.



The pass box is usually equipped with a mechanical or electronic interlocking device to ensure that the doors on both sides cannot be opened at the same time, thereby effectively preventing air convection between the clean area and the non-clean area, reducing the risk of contamination, and is an indispensable and important equipment in the logistics management of the clean room.



Purpose



Reduce the number of people entering and leaving the clean area, prevent cross-contamination of air, and maintain a stable environment inside the clean area.



Classification



Dynamic Pass Box and Static Pass Box depending on whether it has an air supply purification system, the pass box is divided into two types:



  • Dynamic Pass Box: Equipped with a high-efficiency filter (HEPA) and an air supply system inside to continuously purify the air inside the box.



  • Static Pass Box: Without an air supply system, it relies on the external clean environment to maintain the cleanliness of the internal air.



AMBER SUS 304 / 201 Mechanical Interlock Dynamic Pass Box in Pharma 0



Application scenarios



  • Clean production workshop of pharmaceutical factory



  • Sterile packaging area of medical equipment



  • Biological laboratory and vaccine research and development center



  • Food and cosmetics dust-free production line



  • Semiconductor electronics factory



Our advantages



As the Dynamic Pass Box Manufacturers, Amber has more than 17 years of service experience in the dust-free purification industry, with a professional team of senior engineers, designers and technical installers.



  • One-stop solution provider



  • Follow ISO, GMP and other international standards, strict quality control and compliance



  • Complete after-sales service and technical support



The difference between SUS304 and SUS201



Item SUS201 SUS304
Material composition High in manganese and low in nickel High nickel content, stronger corrosion resistance
Rust resistance Medium, suitable for general clean room use Better, suitable for pharmaceutical/laboratory environment
Price Low price, high cost performance Slightly higher, suitable for high-demand places





Specifications



Model CDC-C-400 CDC-C-500 CDC-C-600 CDC-C-800
Out size(W*D*H) 600*470*1000 700*570*1100 800*670*1200 1000*870*1400
Inner size(W*D*H) 400*400*400 500*500*500 600*600*600 800*800*800
Filter size mm 260*260*90 330*280*90 430*380*90 630*580*-90
Motor Power 200W 300W 400W 600W
Air Speed(m/s)

0.45±20%

Cleanliness Grade A
Noise <65dB
Showing Time 0-99 min adjustable
Voltage AC 220V/50HZ





AMBER SUS 304 / 201 Mechanical Interlock Dynamic Pass Box in Pharma 1



FAQ



Q1: What is the internal airflow velocity of the Dynamic Pass Box?

A: The internal airflow velocity of the AMBER dynamic pass box is usually maintained at 0.45m/s ± 20%. When used with a high-efficiency filter (HEPA H13/H14), it can achieve a particle filtration efficiency of 99.995%, ensuring a clean environment inside the pass box.



Q2: Can your Dynamic Pass Box be customized?

A: Of course. As a professional Dynamic Pass Box Manufacturers, we can customize the box material (SUS 304/201), size specifications, filter grade, interlocking method (mechanical/electronic) and control system according to the customer's on-site environment, usage requirements and cleanliness level standards to meet the use requirements of clean workshops in different industries.



Q3: How to choose between Dynamic Pass Box and Static Pass Box?

A: If the cleanliness requirements for the delivered items are high, or they cross different cleanliness level areas, it is recommended to use a Dynamic Pass Box, where the internal dynamic airflow can be continuously purified to avoid cross contamination. If you are only working in the same clean area or do not have high requirements on material cleanliness, you can choose Static Pass Box, which is more cost-effective.



AMBER SUS 304 / 201 Mechanical Interlock Dynamic Pass Box in Pharma 2



AMBER SUS 304 / 201 Mechanical Interlock Dynamic Pass Box in Pharma 3

AMBER SUS 304 / 201 Mechanical Interlock Dynamic Pass Box in Pharma 4

AMBER SUS 304 / 201 Mechanical Interlock Dynamic Pass Box in Pharma 5

AMBER SUS 304 / 201 Mechanical Interlock Dynamic Pass Box in Pharma 6

AMBER SUS 304 / 201 Mechanical Interlock Dynamic Pass Box in Pharma 7

AMBER SUS 304 / 201 Mechanical Interlock Dynamic Pass Box in Pharma 8
