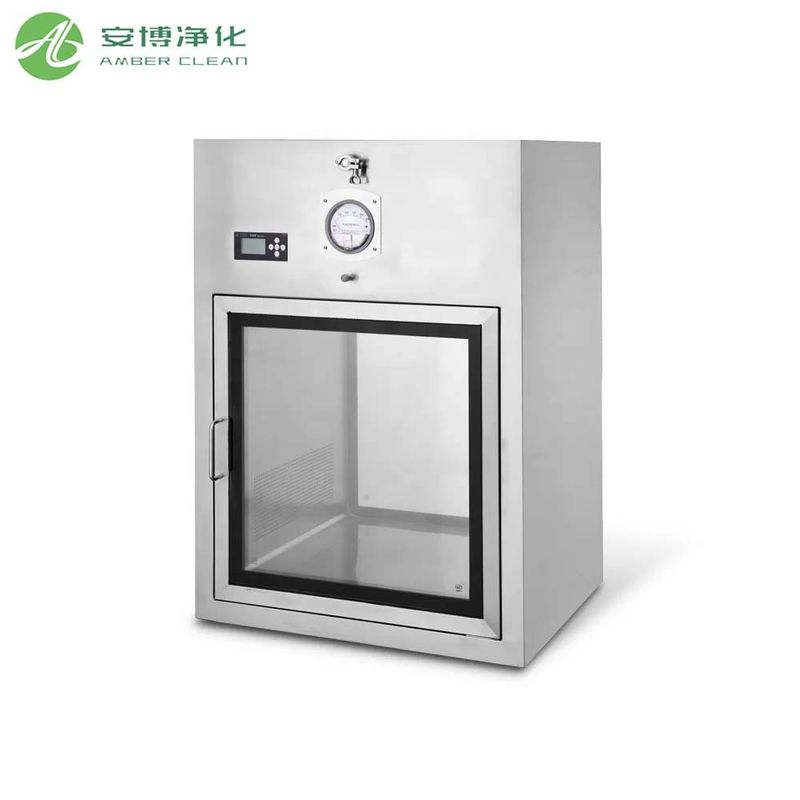

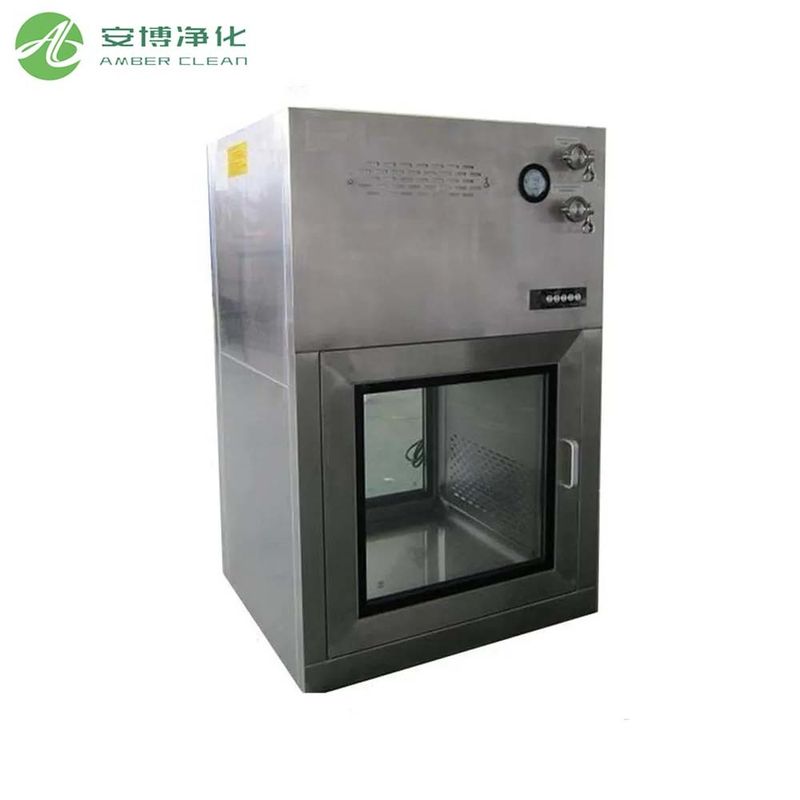

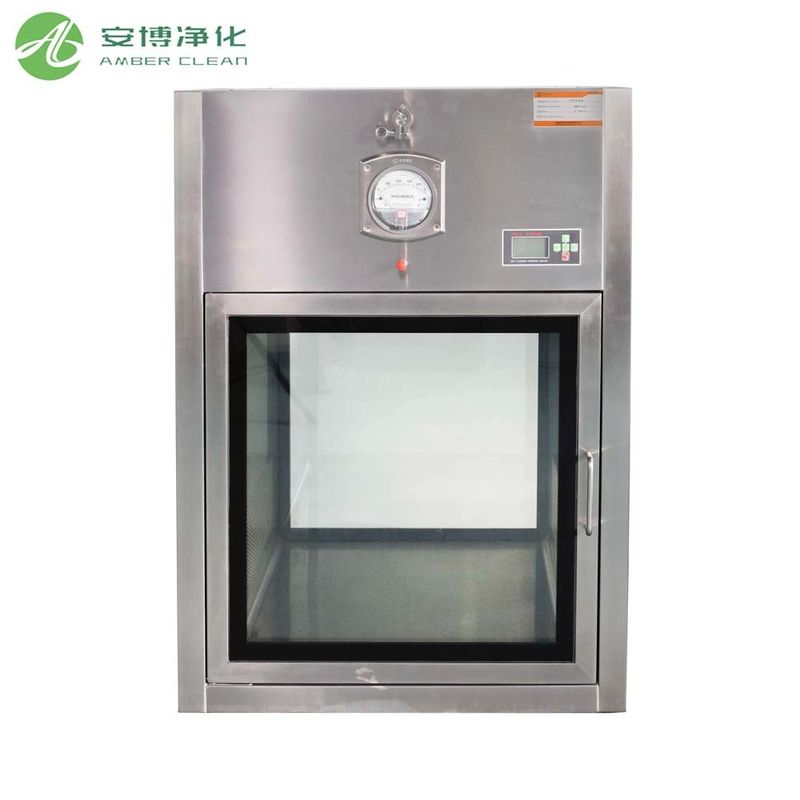

AMBER Laminar Cleanrooms Static Pass Box Inner Size 400*400*400mm

Clean Rooms have static pass-through boxes and dynamic pass-through boxes depending on the way they are set to function. This type of Pass Box is recommended only for areas that already meet the same level of cleanliness or even less. Double-door interlocking is applied to keep the internal environment undisturbed during transfer, so this type is handy in pharmaceutical factories, food processing plants and electronic cleanrooms.

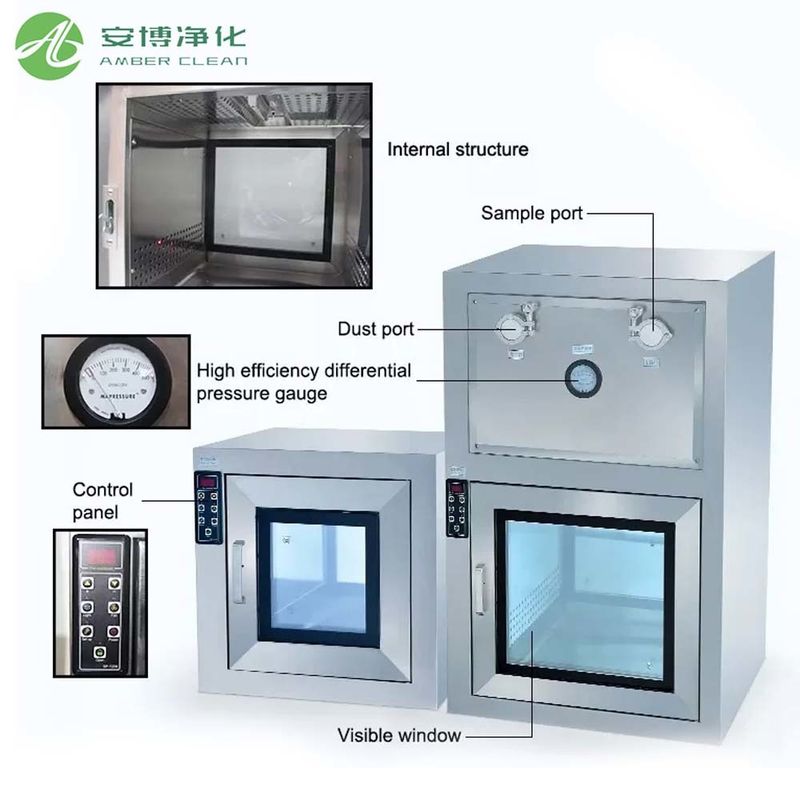

AMBER Pass Box Product Features

1. High-efficiency cleanliness, robust structure

The AMBER Static Pass Box is made of high-quality stainless steel, with smooth and clean inner and outer surfaces that are corrosion-resistant and easy to clean. The rounded corners prevent the accumulation of dirt and debris, complying with GMP cleanroom standards.

2. Dual-door interlocking system to prevent cross-contamination

The dual-door electronic interlocking system ensures that both sides of the door cannot be opened simultaneously during transfer, effectively blocking airflow and reducing the risk of contamination in the cleanroom, thereby ensuring production safety.

3. Customizable dimensions and optional features

The standard internal dimensions are 400×400×400mm, but custom specifications can be provided to meet different cleanroom requirements. Optional configurations include UV sterilisation lamps, intercom systems, and mechanical interlocks, catering to the diverse clean production environment needs of the pharmaceutical, cosmetics, and semiconductor industries.

Specifications

FAQ

Q1: What is the function of the UV lamp in the Pass Box?

A: UV light effectively reduces the risk of microbial contamination, ensuring the cleanliness and safety of materials. In some Cleanroom Static Pass Boxes, UV sterilisation lamps are installed to assist in sterilising the surfaces of items before and after transfer, particularly suitable for pharmaceuticals, food, and biological laboratories.

Q2: What is the difference between a Static Pass Box and a Dynamic Pass Box?

A: A Static Pass Box lacks a self-circulating fan system and relies on the cleanroom's own environment to maintain internal cleanliness, making it suitable for areas with the same cleanliness level. A Dynamic Pass Box is equipped with a HEPA filter and fan, creating a unidirectional airflow to maintain clean airflow during transfer, making it suitable for transferring items between areas with significant cleanliness differences.

Q3: Why choose AMBER Laminar Cleanrooms Static Pass Box?

A: AMBER has specialised in cleanroom auxiliary equipment for over 17 years, with products certified to ISO and CE standards.
