Name: Dust Free Sandwich Panel Clean Room Rock Wool Insulated Class 100 1150mm
Brand: Dongguan Amber Purification Engineering Limited
SKU: AM-CR07
Price: 15 USD
Availability: InStock

Home > products > Modular Clean Room >

Dust Free Sandwich Panel Clean Room Rock Wool Insulated Class 100 1150mm

Sandwich Panel Clean Room Rock Wool

Sandwich Panel Clean Room Class 100

Dust Free Clean Room 1150mm

Place of Origin:

China

Brand Name:

AMBER

Certification:

Model Number:

AM-CR07

Request A Quote

Product Details

Name:

Clean Room Panel Systems

Application:

Pharmaceutical, Chemical Lab, Electronic Plant, Hospital

Feature:

Fire Proofing, Thermal Insulated, Big Bearing Capacity

Cleanliness:

Class 100-100000

Material:

Stainless Steel, Stailess Steel SUS304/201/Q195 /galvanized Sheet, Sandwich Panel, Fire-proof), Laminated Board(scratch-proof

Payment & Shipping Terms

Minimum Order Quantity

1 square meter

Price

USD15 per square meter

Packaging Details

plywood case

Delivery Time

3-5 days

Payment Terms

T/T, L/C, Western Union

Supply Ability

10000 square meter per month

Modular Clean Room Designs for Pharmaceutical Production

Get Best Price

Video

Amber Sandwich Container Isolation Fireproof Cultivation Modular Wool Dust Free Room

Get Best Price

Video

Hospital Modular Clean Room ISO Industrial Modular Purification Fast Installation

Get Best Price

Video

SUS304 Laminar Flow ISO 8 Clean Room Fire Proof Biological Big Bearing Capacity

Get Best Price

86--15015139152

vanessa@amberdg.com

Contact Now

Product Description

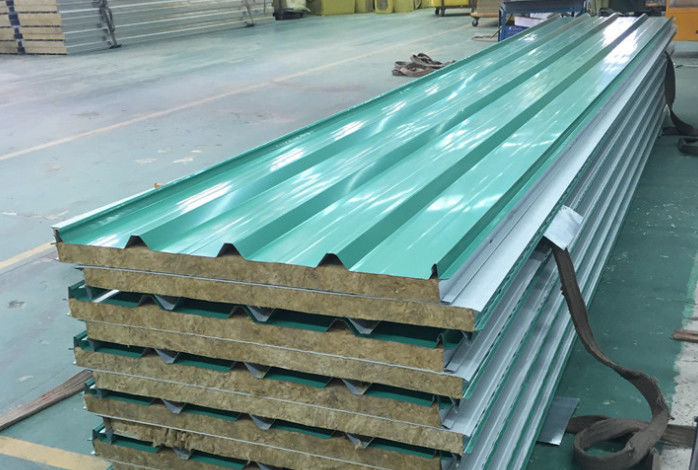

Rock Wool Insulated Sandwich Panel Clean Room Wall Panel For Dust Free Room

Glass Wool Panels are consist of top and bottom PPGI, Zinc, Aluminum sheet, with high density basalt wool as core insulation. Due to the excellent performance fire resistance and acoustic insulation, glass wool sandwich panel are commonly adopted for fire-resistance and soundproof buildings.

Amber designs and manufactures hardwall modular cleanrooms that meet specific industry requirements, including medical services, chemistry and electronics, food and beverages, and general laboratory applications. As a customized modular cleanroom manufacturer, Jinyi offers reliable, high quality one-stop services for modular cleanroom systems, including the design, manufacturing, installation, and after-sales services.

Glossary of Terms
Air Return Vent: Allows air to exit the cleanroom and return to the air conditioning system to be refiltered

FFU: Directs filtered, clean air into the cleanroom

Pass Box: Allows items to be transferred between non-clean and clean areas, or two areas of differing cleanliness by sterilizing the items to prevent contamination; also reduces traffic through the main cleanroom entrance

Clean Booth: A sterile, modular room, isolated inside the clean area, in which work of a different nature or different cleanliness requirements can be performed

Air Shower Channel: Sprays personnel or items entering the cleanroom with high-speed, HEPA-filtered air in order to remove microscopic particles from clothing, skin, and surfaces of items before entry into the cleanroom Cleanroom Epoxy Resin Floor: Provides strong acid resistance, scratch protection, weight bearing, impact protection, resists dust collection, slip resistance, and a waterproof seal

Clean Bench: Clean benches are to cleanrooms what cubicles or desks are to an office. These locations provide a location for high-precision work to be performed, and also provide an independent airstream and filtration system to ensure the work area is free of contaminants

Cleanroom Wall Panels: Constructed of high-quality steel, the cleanroom wall panels provide a barrier against the outside
environment and prevent contamination

Clean room wall and ceiling board type

Sandwich panel	Double steel +Sulfur oxygen magnesium filler	Double steel+ rock wool filler	Double steel+ PU filler	Double steel+Mgo filler	Double steel+EPS filler
Fire proofing	A	A	A	A	B
Weight Capacity	180kg/m2	80kg/m2	100kg/m2	100-150kg/m2	80kg/m2
Size	1150/1180mm width, height customized	1150/1180mm width, height customized	1150mm, height customized	1150/1180mm width, height customized	1150mm, height customized
Steel thickness	0.376mm, 0.426mm, 0.476mm, 0.526mm, 0.576mm
Thickness	50mm, 75mm, 100mm
Installation	1. we send engineers to the customer side 2. constract out to construction team 3. customer send technicist to our company for free studying
