Name: Prefab ESP Clean Room Sandwich Panel Systems GMP 1150mm Width Customized
Brand: Dongguan Amber Purification Engineering Limited
SKU: AM-CR05
Price: 13 USD
Availability: InStock

Home > products > Modular Clean Room >

Prefab ESP Clean Room Sandwich Panel Systems GMP 1150mm Width Customized

Clean Room Sandwich Panel 1150mm

GMP Clean Room Sandwich Panel

ESP Clean Room Panel Systems

Place of Origin:

China

Brand Name:

AMBER

Certification:

Model Number:

AM-CR05

Request A Quote

Product Details

Application:

Pharmaceutical, Chemical Lab, Electronic Plant, Hospital

Feature:

Fire Proofing, Thermal Insulated, Big Bearing Capacity

Cleanliness:

Class 100-100000

Material:

Stainless Steel, Stailess Steel SUS304/201/Q195 /galvanized Sheet, Sandwich Panel, Fire-proof), Laminated Board(scratch-proof

Payment & Shipping Terms

Minimum Order Quantity

1 square meter

Price

USD13 per square meter

Packaging Details

plywood case

Delivery Time

3-5 days

Payment Terms

T/T, L/C, Western Union

Supply Ability

10000 square meter per month

Modular Clean Room Designs for Pharmaceutical Production

Get Best Price

Video

Amber Sandwich Container Isolation Fireproof Cultivation Modular Wool Dust Free Room

Get Best Price

Video

Hospital Modular Clean Room ISO Industrial Modular Purification Fast Installation

Get Best Price

Video

SUS304 Laminar Flow ISO 8 Clean Room Fire Proof Biological Big Bearing Capacity

Get Best Price

86--15015139152

vanessa@amberdg.com

Contact Now

Product Description

Customized Laminar Flow Modular Clean Room Laboratory Rock Wood Panel Clean Room

1) It is crucial to maintain a contaminant-free clean environment when manufacturing medical devices such as biological
implants. This starts with the clean room design and management systems. The clean room design prevents outside contamination, while regular maintenance and sanitation upkeep minimize the risk of contamination originating within the clean room itself.

(2) Implants that are non-sterile or are awaiting sterilization should be subject to purification and clean packaging processes. This will allow for uniformity and control over product quality. When constructing a GMP Medical Instrument Clean room, a location should be designated for the packaging process, and processes should be implemented to ensure that products avoid contamination risks at all times. For further reference, please see the YY0033-2000 Standards.

(3) Procedures must be developed to control environments in which there exists a contamination risk to products. This includes any time personnel makes contact with a product, including when products are moved from one location to another.

Glossary of Terms
Air Return Vent: Allows air to exit the cleanroom and return to the air conditioning system to be refiltered

FFU: Directs filtered, clean air into the cleanroom

Pass Box: Allows items to be transferred between non-clean and clean areas, or two areas of differing cleanliness by sterilizing the items to prevent contamination; also reduces traffic through the main cleanroom entrance

Clean Booth: A sterile, modular room, isolated inside the clean area, in which work of a different nature or different cleanliness requirements can be performed

Air Shower Channel: Sprays personnel or items entering the cleanroom with high-speed, HEPA-filtered air in order to remove microscopic particles from clothing, skin, and surfaces of items before entry into the cleanroom Cleanroom Epoxy Resin Floor: Provides strong acid resistance, scratch protection, weight bearing, impact protection, resists dust collection, slip resistance, and a waterproof seal

Clean Bench: Clean benches are to cleanrooms what cubicles or desks are to an office. These locations provide a location for high-precision work to be performed, and also provide an independent airstream and filtration system to ensure the work area is free of contaminants

Cleanroom Wall Panels: Constructed of high-quality steel, the cleanroom wall panels provide a barrier against the outside
environment and prevent contamination

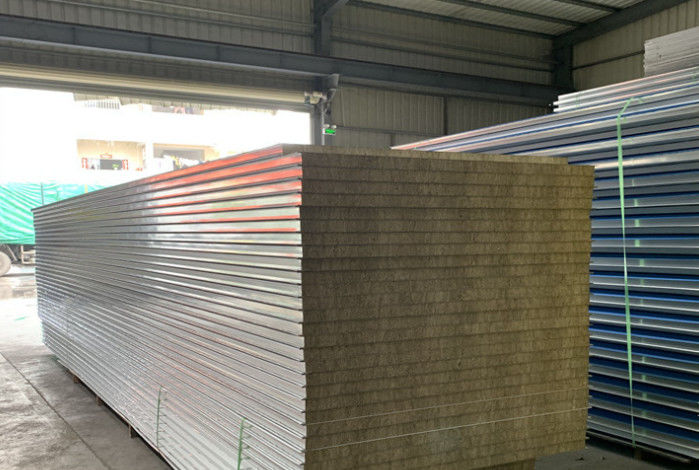

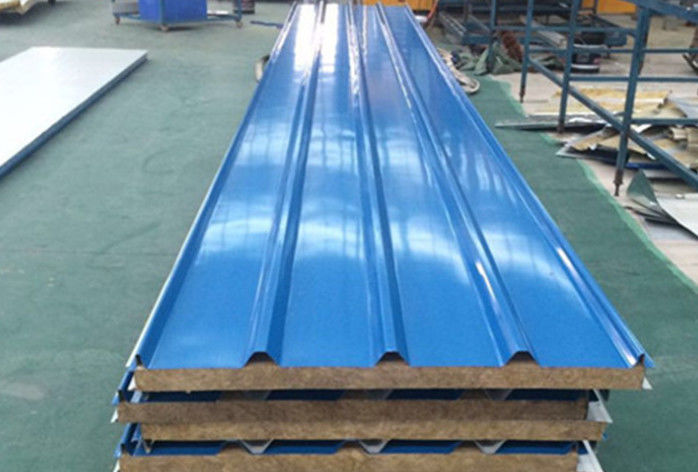

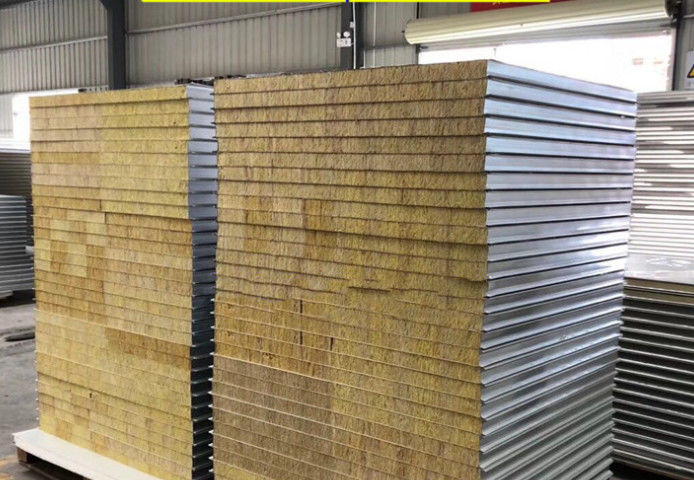

Clean room rock wool, EPS, honeycomb sandwich Panel of the ceiling, wall accessories:

Wall/ceiling panel	Machine-made or Hand-made sandwich board
Clean room equipment	Air shower, FFU, Pass box, Laminar flow cabinet, HEPA box
Cleanliness	Class100-100000
Purification system	HVAC, or AC conditioner+FFU
Floor	PVC anti-static floor or epoxy-based coating
Other accessories	Stalinist window, LED panel light, Door, Hand wash sink, storage/shoe cabinet etc
Service	Design, manufacturing, construction

Clean room wall and ceiling board type

Sandwich panel	Double steel +Sulfur oxygen magnesium filler	Double steel+ rock wool filler	Double steel+ PU filler	Double steel+Mgo filler	Double steel+EPS filler
Fire proofing	A	A	A	A	B
Weight Capacity	180kg/m2	80kg/m2	100kg/m2	100-150kg/m2	80kg/m2
Size	1150/1180mm width, height customized	1150/1180mm width, height customized	1150mm, height customized	1150/1180mm width, height customized	1150mm, height customized
Steel thickness	0.376mm, 0.426mm, 0.476mm, 0.526mm, 0.576mm
Thickness	50mm, 75mm, 100mm
Installation	1. we send engineers to the customer side 2. constract out to construction team 3. customer send technicist to our company for free studying
