50mm Laboratory Clean Room Laminar Flow Stainless Steel Customized

50mm Laboratory Clean Room Laminar Flow Stainless Steel Customized

50mm Laboratory Clean Room

Laboratory Clean Room Laminar Flow

Place of Origin:

China

Brand Name:

AMBER

Certification:

CE

Model Number:

AM-CR04

Contact Us

Request A Quote
Product Details
Name:
Modular Clean Lab
Application:
Pharmaceutical, Chemical Lab, Electronic Plant, Hospital
Feature:
Fire Proofing, Thermal Insulated, Big Bearing Capacity
Cleanliness:
Class 100-100000
Material:
Stainless Steel, Stailess Steel SUS304/201/Q195 /galvanized Sheet, Sandwich Panel, Fire-proof), Laminated Board(scratch-proof
Payment & Shipping Terms
Minimum Order Quantity
1 square meter
Price
USD11 per square meter
Packaging Details
plywood case
Delivery Time
3-5 days
Payment Terms
T/T, L/C, Western Union
Supply Ability
10000 square meter per month
Product Description
Customized Laminar Flow Modular Clean Room Laboratory Rock Wood Panel Clean Room





GMP requires a cleanroom or clean area for pharmaceutical manufacturing. Within the GMP there are further standards for the materials used in the construction of a cleanroom or are compliant with GMP. All materials must be able to withstand frequent cleaning and disinfection. Additionally, materials must be free of cracks, smooth and level, and able to interlock seamlessly. Particulate materials may not be used due to the risk of contamination. Aside from GMP compliance, other factors such as durability, ease of installation, and cost come into consideration when designing a cleanroom. We will guide you through the design process step by step to ensure that both GMP standards, your needs, and your budget are all satisfied.



1) It is crucial to maintain a contaminant-free clean environment when manufacturing medical devices such as biological
implants. This starts with the clean room design and management systems. The clean room design prevents outside contamination, while regular maintenance and sanitation upkeep minimize the risk of contamination originating within the clean room itself.


(2) Implants that are non-sterile or are awaiting sterilization should be subject to purification and clean packaging processes. This will allow for uniformity and control over product quality. When constructing a GMP Medical Instrument Clean room, a location should be designated for the packaging process, and processes should be implemented to ensure that products avoid contamination risks at all times. For further reference, please see the YY0033-2000 Standards.

(3) Procedures must be developed to control environments in which there exists a contamination risk to products. This includes any time personnel makes contact with a product, including when products are moved from one location to another.

Clean room rock wool, EPS, honeycomb sandwich Panel of the ceiling, wall accessories:

Wall/ceiling panel Machine-made or Hand-made sandwich board
Clean room equipment Air shower, FFU, Pass box, Laminar flow cabinet, HEPA box
Cleanliness Class100-100000
Purification system HVAC, or AC conditioner+FFU
Floor PVC anti-static floor or epoxy-based coating
Other accessories Stalinist window, LED panel light, Door, Hand wash sink, storage/shoe cabinet etc
Service Design, manufacturing, construction

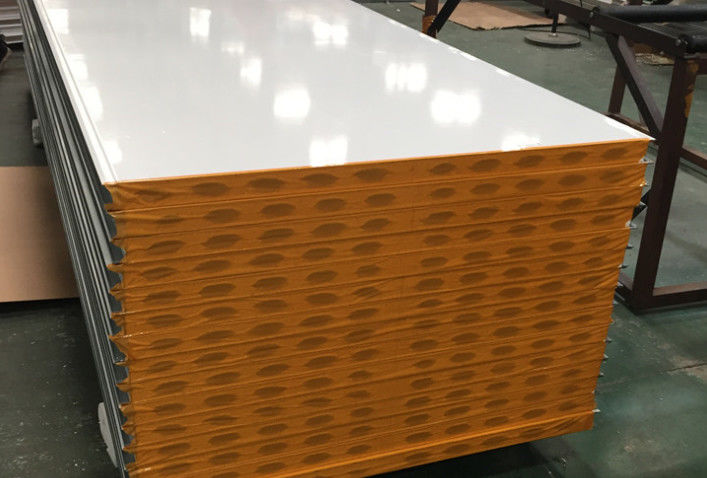

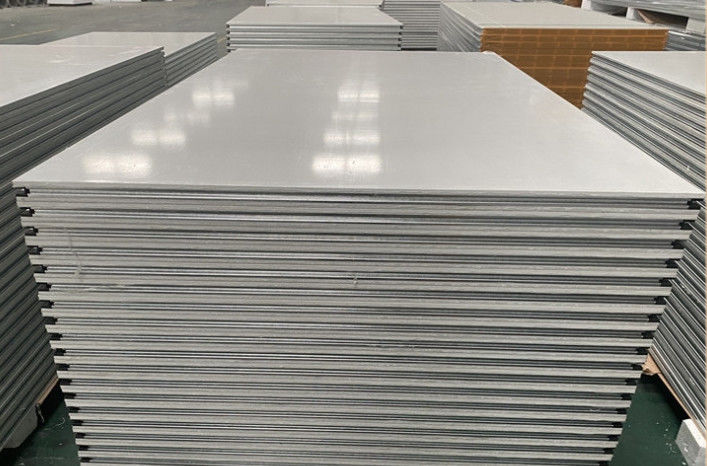

Clean room wall and ceiling board type

Sandwich panel Double steel +Sulfur oxygen magnesium filler Double steel+ rock wool filler Double steel+ PU filler Double steel+Mgo filler Double steel+EPS filler
Fire proofing A A A A B
Weight Capacity 180kg/m2 80kg/m2 100kg/m2 100-150kg/m2 80kg/m2
Size 1150/1180mm width, height customized 1150/1180mm width, height customized 1150mm, height customized 1150/1180mm width, height customized 1150mm, height customized
Steel thickness 0.376mm, 0.426mm, 0.476mm, 0.526mm, 0.576mm
Thickness 50mm, 75mm, 100mm
Installation 1. we send engineers to the customer side
2. constract out to construction team
3. customer send technicist to our company for free studying
50mm Laboratory Clean Room Laminar Flow Stainless Steel Customized 0



50mm Laboratory Clean Room Laminar Flow Stainless Steel Customized 1

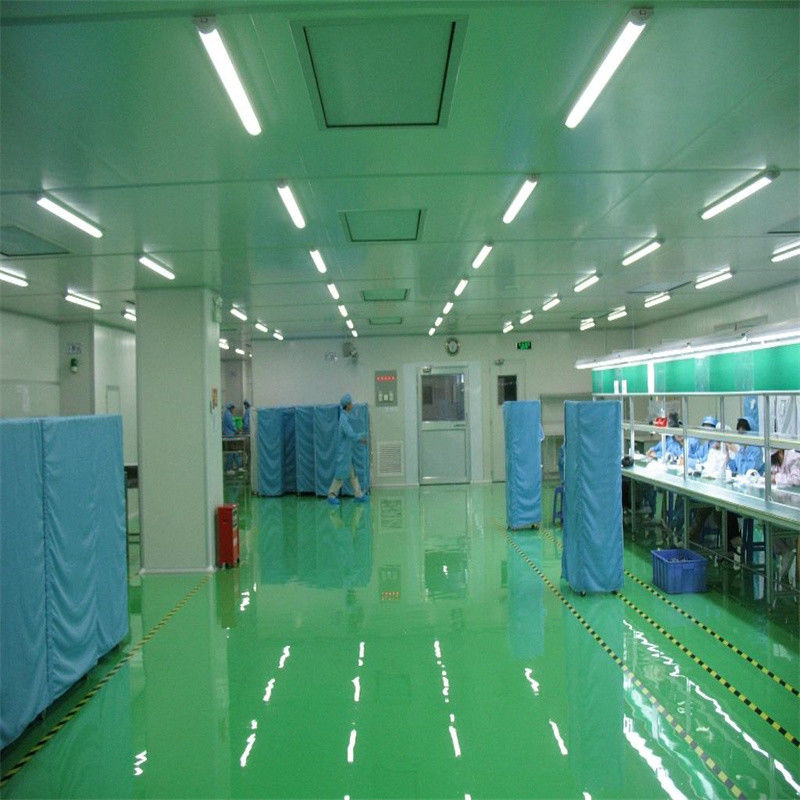

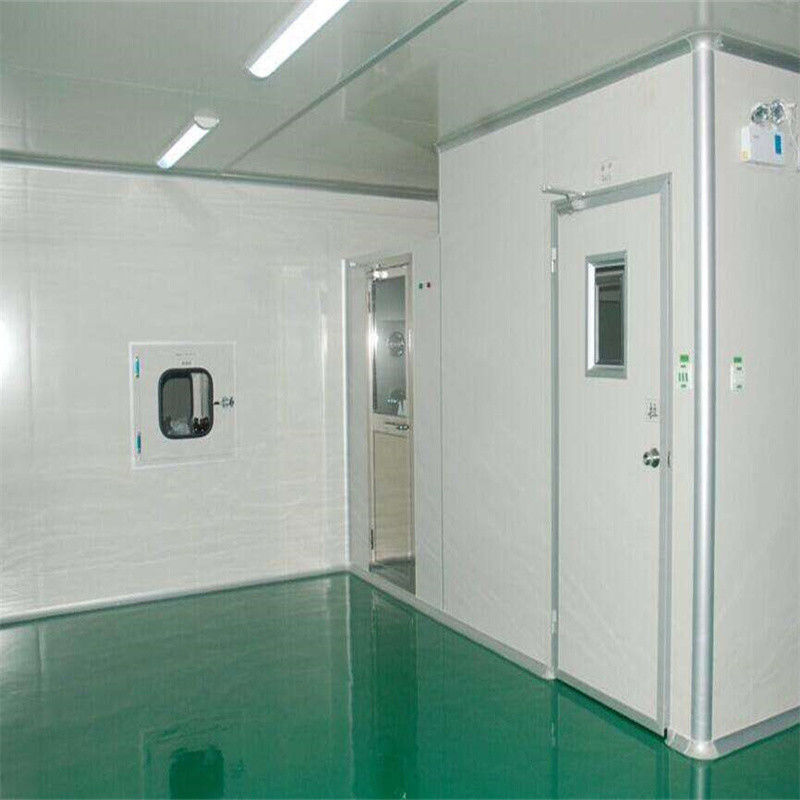

Project Images

50mm Laboratory Clean Room Laminar Flow Stainless Steel Customized 2
50mm Laboratory Clean Room Laminar Flow Stainless Steel Customized 3
50mm Laboratory Clean Room Laminar Flow Stainless Steel Customized 4
50mm Laboratory Clean Room Laminar Flow Stainless Steel Customized 5

Project Case
50mm Laboratory Clean Room Laminar Flow Stainless Steel Customized 6
