Name: Dust Free Clean Room Sandwich Panel Customized PVC Floor
Brand: Dongguan Amber Purification Engineering Limited
SKU: AM-CR03
Price: 12 USD
Availability: InStock

Home > products > Modular Clean Room >

Dust Free Clean Room Sandwich Panel Customized PVC Floor

Dust Free Clean Room Sandwich Panel

Clean Room Sandwich Panel Customized

Place of Origin:

China

Brand Name:

AMBER

Certification:

Model Number:

AM-CR03

Request A Quote

Product Details

Name:

Clean Room Sandwich Panel

Feature:

Fire Proofing, Thermal Insulated, Big Bearing Capacity

Application:

Pharmaceutical, Chemical Lab, Electronic Plant, Hospital

Cleanliness:

Class 100-100000

Material:

Stainless Steel, Stailess Steel SUS304/201/Q195 /galvanized Sheet, Sandwich Panel, Fire-proof), Laminated Board(scratch-proof

Payment & Shipping Terms

Minimum Order Quantity

1 square meter

Price

USD12 per square meter

Packaging Details

plywood case

Delivery Time

3-5 days

Payment Terms

T/T, L/C, Western Union

Supply Ability

10000 square meter per month

Modular Clean Room Designs for Pharmaceutical Production

Get Best Price

Video

Amber Sandwich Container Isolation Fireproof Cultivation Modular Wool Dust Free Room

Get Best Price

Video

Hospital Modular Clean Room ISO Industrial Modular Purification Fast Installation

Get Best Price

Video

SUS304 Laminar Flow ISO 8 Clean Room Fire Proof Biological Big Bearing Capacity

Get Best Price

86--15015139152

vanessa@amberdg.com

Contact Now

Product Description

Customized Dust Free Room Modular Clean Room Sandwich Panels Cleanroom Project

1) It is crucial to maintain a contaminant-free clean environment when manufacturing medical devices such as biological
implants. This starts with the clean room design and management systems. The clean room design prevents outside contamination, while regular maintenance and sanitation upkeep minimize the risk of contamination originating within the clean room itself.

(2) Implants that are non-sterile or are awaiting sterilization should be subject to purification and clean packaging processes. This will allow for uniformity and control over product quality. When constructing a GMP Medical Instrument Clean room, a location should be designated for the packaging process, and processes should be implemented to ensure that products avoid contamination risks at all times. For further reference, please see the YY0033-2000 Standards.

(3) Procedures must be developed to control environments in which there exists a contamination risk to products. This includes any time personnel makes contact with a product, including when products are moved from one location to another.

Clean room rock wool, EPS, honeycomb sandwich Panel of the ceiling, wall accessories:

Wall/ceiling panel	Machine-made or Hand-made sandwich board
Clean room equipment	Air shower, FFU, Pass box, Laminar flow cabinet, hepa box
Cleanliness	Class100-100000
Purification system	HVAC, or AC conditioner+FFU
Floor	PVC anti-static floor or epoxy-based coating
Other accessories	Stalinist window, LED panel light, Door, Hand wash sink, storage/shoe cabinet etc
Service	Design, manufacturing, construction

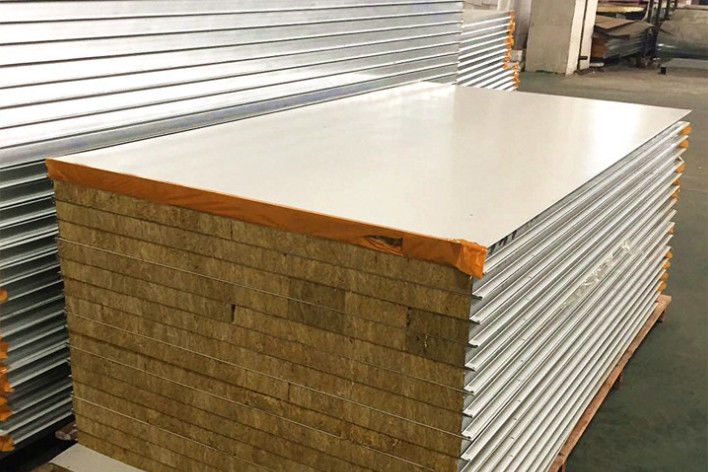

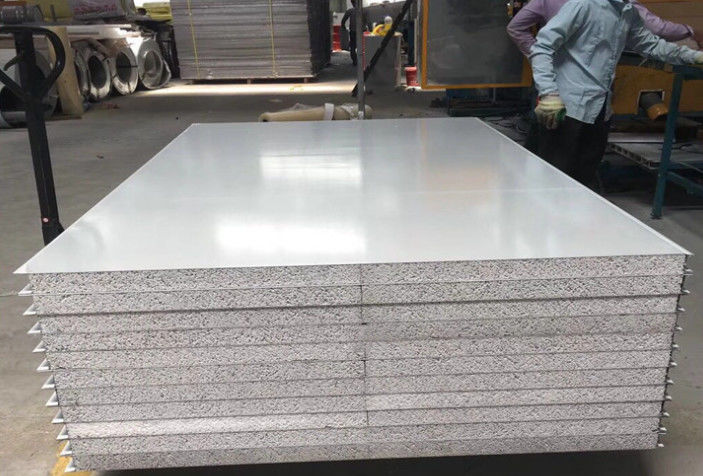

Clean room wall and ceiling board type

Sandwich panel	Double steel +Sulfur oxygen magnesium filler	Double steel+ rock wool filler	Double steel+ PU filler	Double steel+Mgo filler	Double steel+EPS filler
Fire proofing	A	A	A	A	B
Weight Capacity	180kg/m2	80kg/m2	100kg/m2	100-150kg/m2	80kg/m2
Size	1150/1180mm width, height customized	1150/1180mm width, height customized	1150mm, height customized	1150/1180mm width, height customized	1150mm, height customized
Steel thickness	0.376mm, 0.426mm, 0.476mm, 0.526mm, 0.576mm
Thickness	50mm, 75mm, 100mm
Installation	1. we send engineer to customer side 2. constract out to construction team 3. customer send technicist to our company for free studying

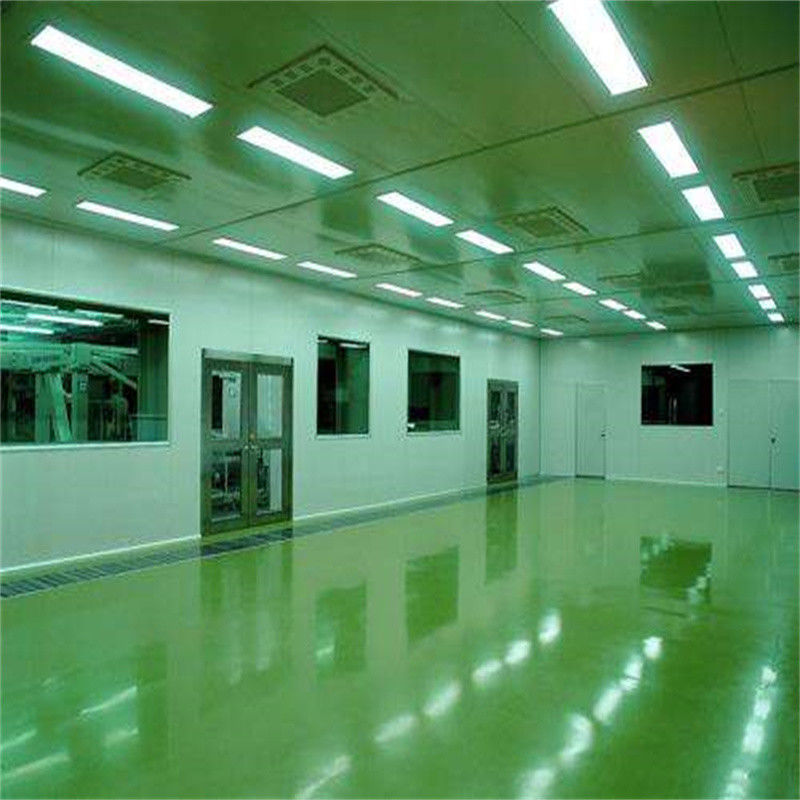

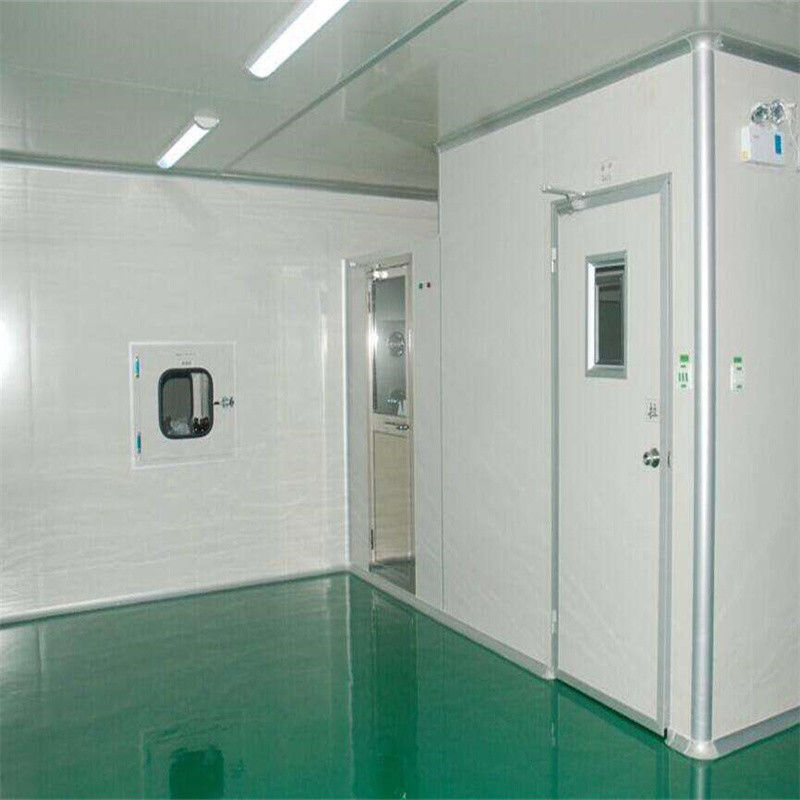

Project Images

Project Case

FAQ

1. How can I get the price?

'-We usually quote within 24 hours after we get your inquiry(Except weekends and holidays). -If you are very urgent to get the price, please email us or contact us in other ways so that we can offer you a quote.

2. Can I buy samples before placing orders?
-Yes. Please feel free to contact us.

3. What is your lead time?
-It depends on the order quantity and the season you place the order.
-Usually, we can ship within 7-15 days for small quantities
and about 30 days for large quantities.

4. What is your payment term?
-T/T, Western Union. This is negotiable.

5. What is the shipping method?
-It could be shipped by sea, by air, or by express(EMS, UPS, DHL, TNT, FEDEX and etc). Please confirm with us before placing orders.

6. How do you make our business a long-term and good relationship?
-1. We keep good quality and competitive price to ensure our customers benefit ;

-2. We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from.
